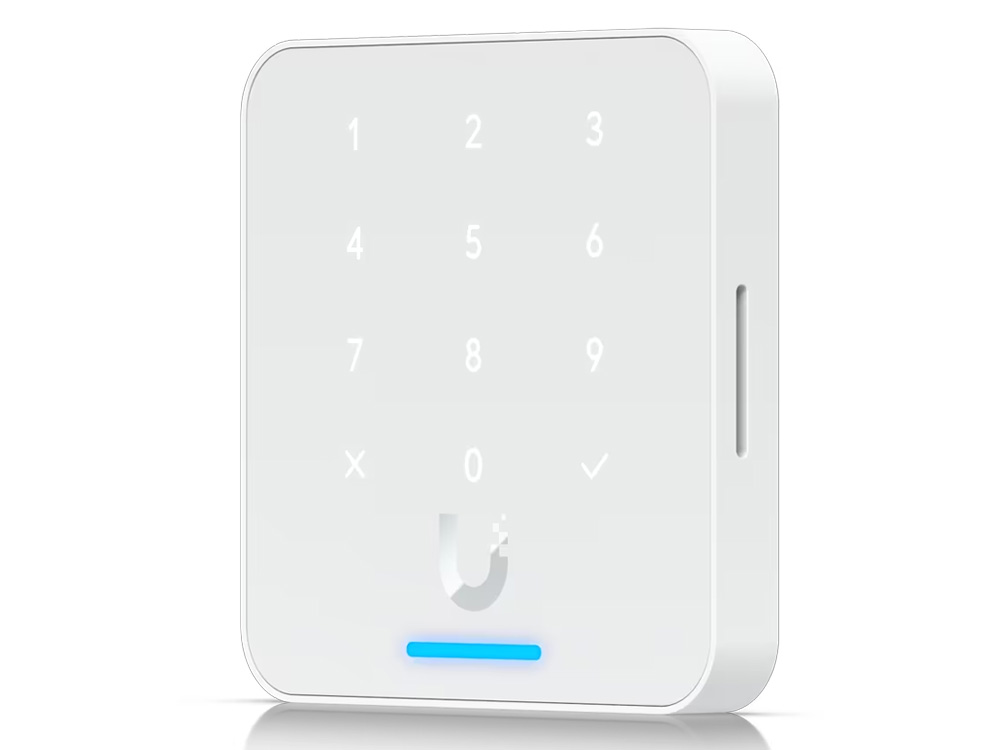

Ubiquiti Reader Flex NFC Card Reader with Keypad and Touch Pass
$399.00
Keypad · Touch Pass · IP55
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti Reader Flex NFC Card Reader with Keypad and Touch Pass
Key features
- Keypad
- Touch Pass
- IP55
Manufacturer model: UA-G3-FLEX-W
Specifications
| Feature | Specification/Details |
|---|---|

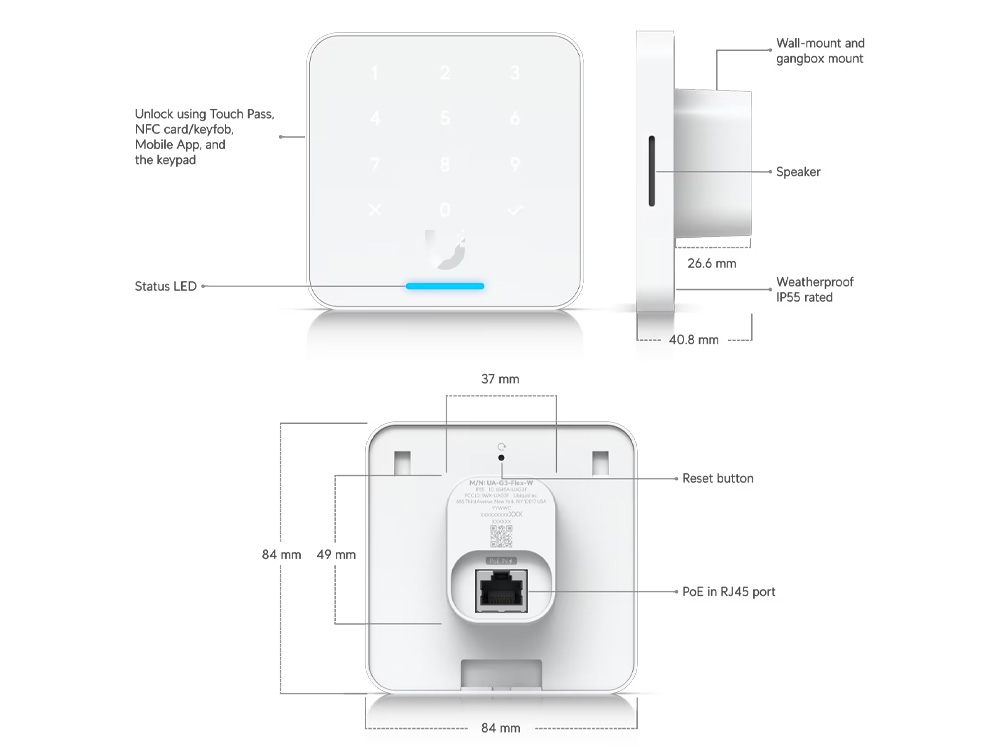

| Dimensions | 84 × 84 × 40.8 mm (3.3 × 3.3 × 1.6″) |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I |
| Weatherproofing | IP55 |
| Weight | 165 g (5.8 oz) |
| Enclosure Material | Polycarbonate, glass, aluminium alloy |
| Mount Material | Polycarbonate, aluminium alloy |

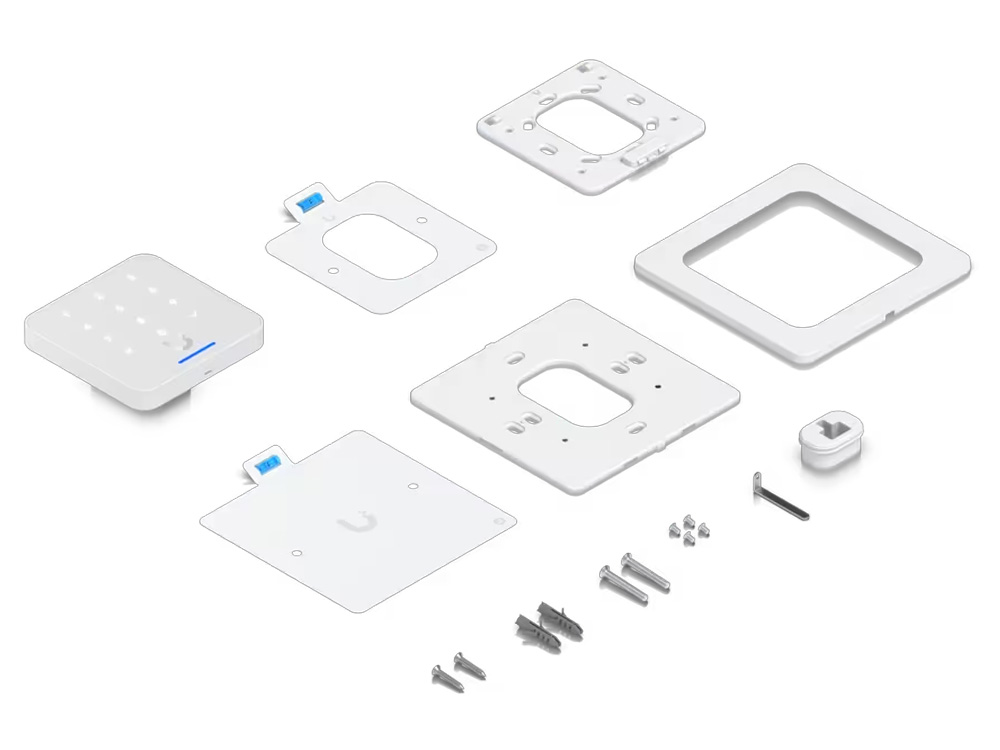

| Mounting | Wall (Included) |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1, NFC |
| Power Method | PoE |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | (12) Capacitive buttons |
| Speaker | ✓ |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18″) |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) |
| PoE Cabling Requirements | Cat 5e cabling minimum |
| UL 294 Statement | Compliance with IEEE 802.3 not verified as part of UL 294 |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-G3-Flex V01 |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
Product overview
