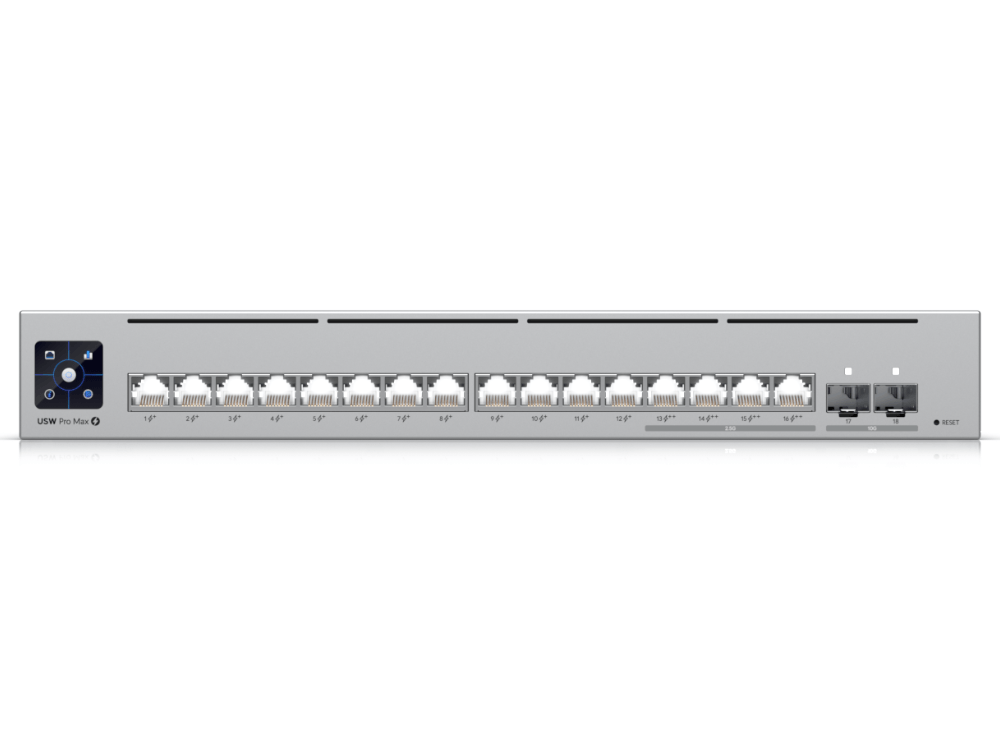

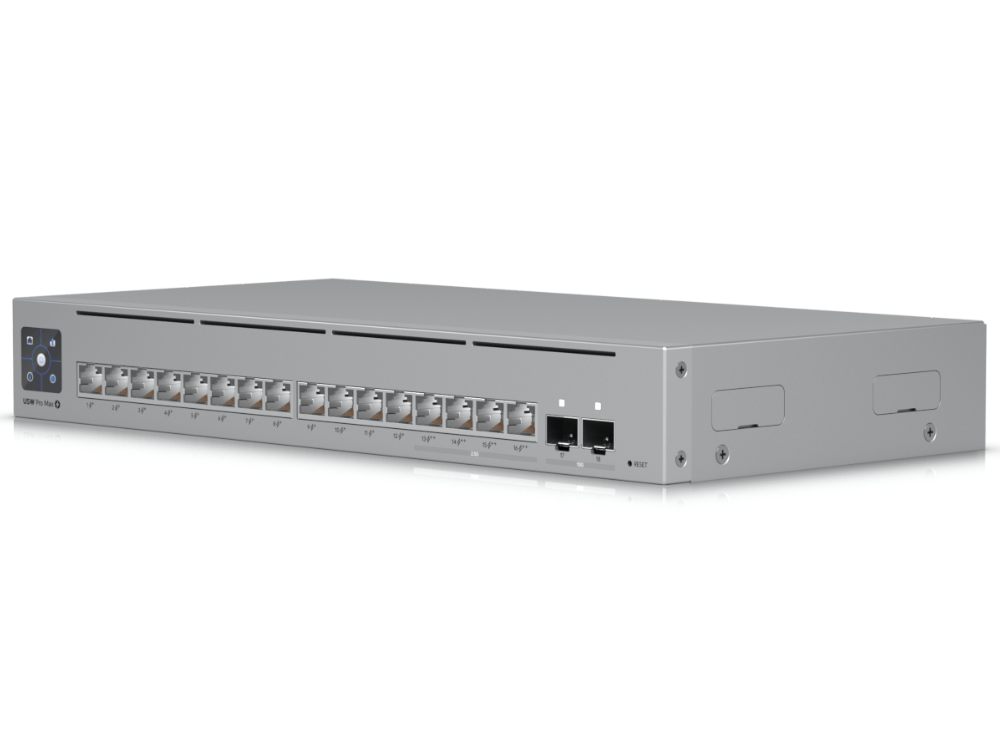

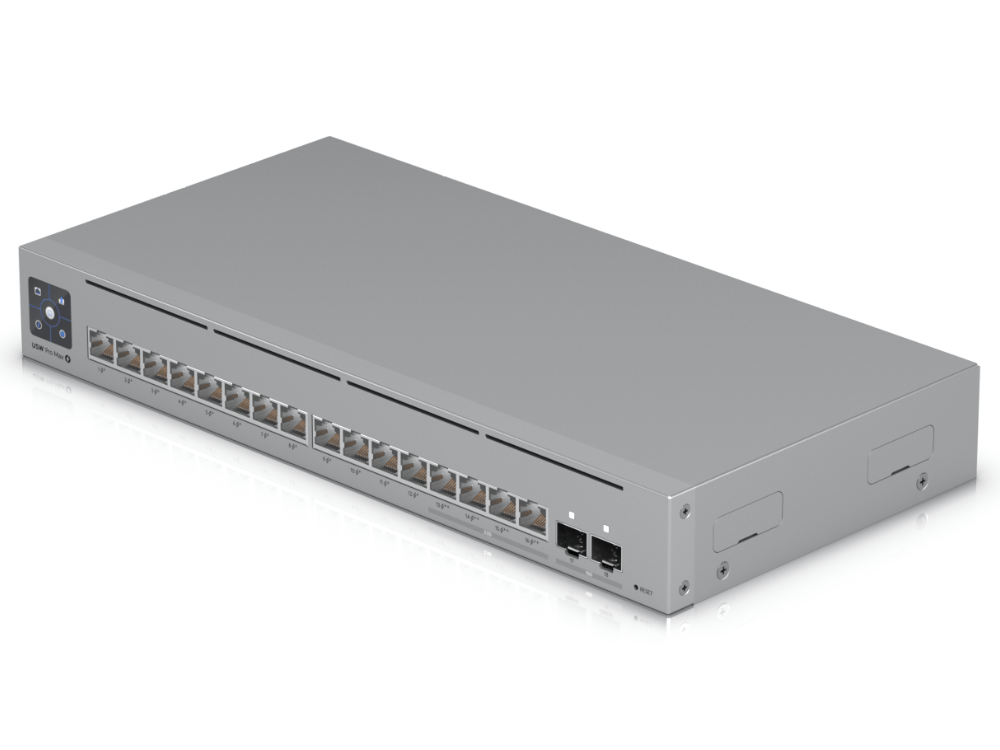

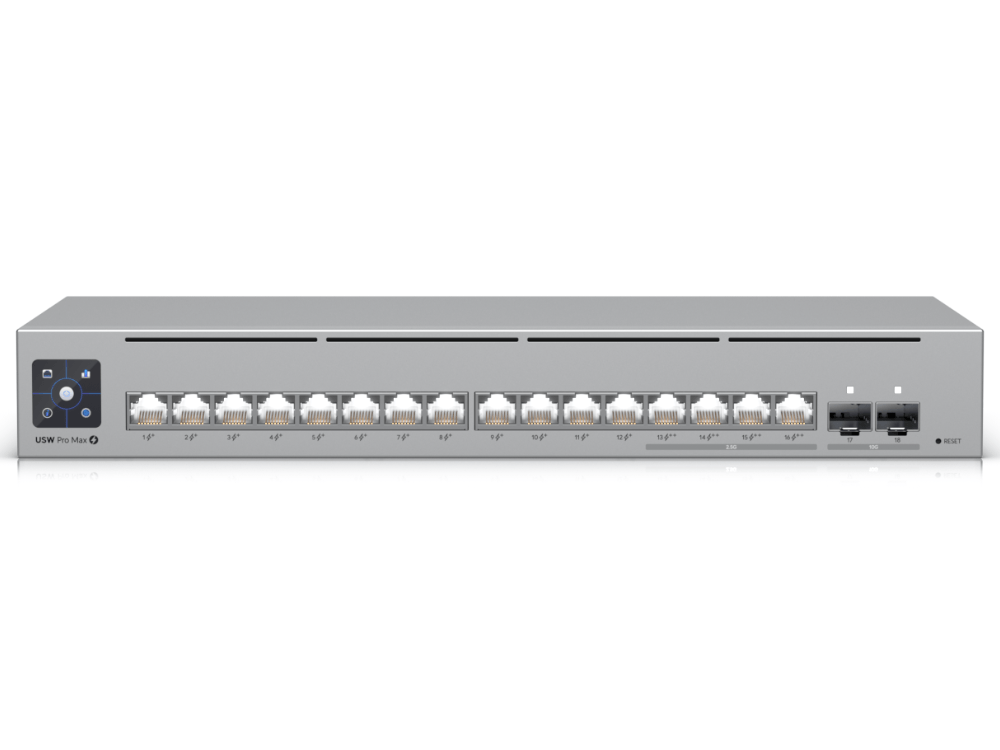

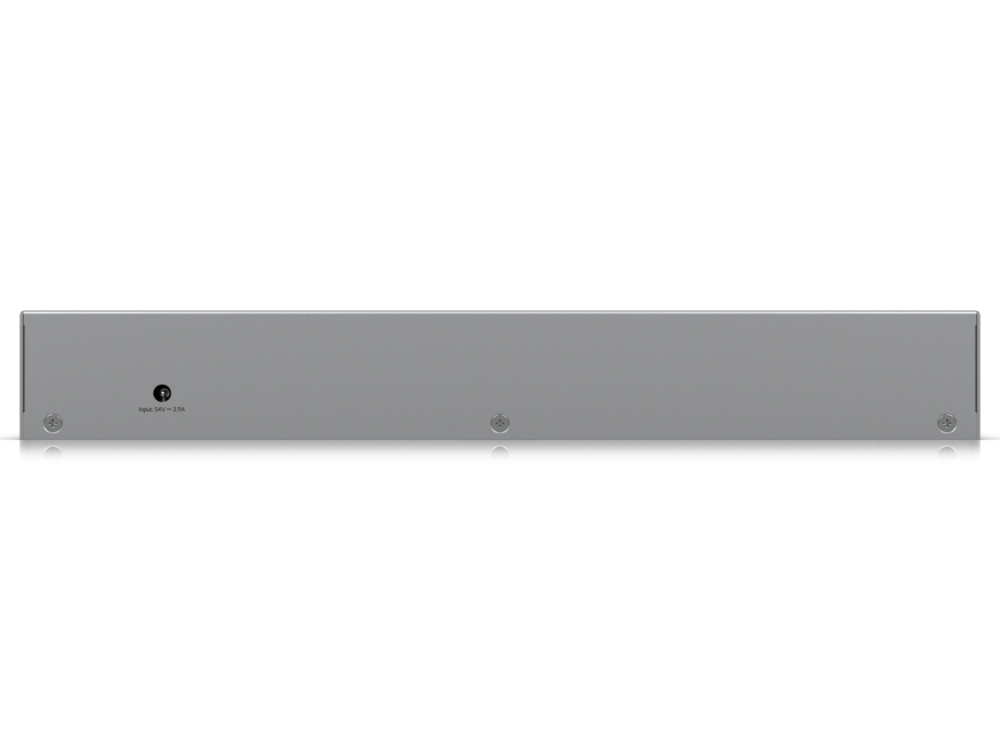

Ubiquiti Pro Max 16 PoE 16-port Layer 3 Etherlighting Switch
$859.00
16-port · 180W PoE · 2.5 GbE
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti Pro Max 16 PoE 16-port Layer 3 Etherlighting Switch
Key features
- 16-port
- 180W PoE
- 2.5 GbE
Manufacturer model: USW-Pro-Max-16-PoE
Specifications
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
|---|---|
| 1 GbE RJ45 | 12 (All PoE+) (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (All PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U), desktop, wall |
| Etherlighting™ | ✓ |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| Packet Buffer Size | 1.5 MB |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | ✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| PoE+ | 12 |
| PoE++ | 4 |
| PoE | 15.4W |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 25W (Excluding PoE Output) 210W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50—54V DC |
| Management | Ethernet AR |
| Heat Dissipation (Excluding PoE Output) | 102.36 BTU/hr |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | ✓ |
| SFP+ | ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | Application Requirements |
| UniFi Network | Version 8.1.127 and later |

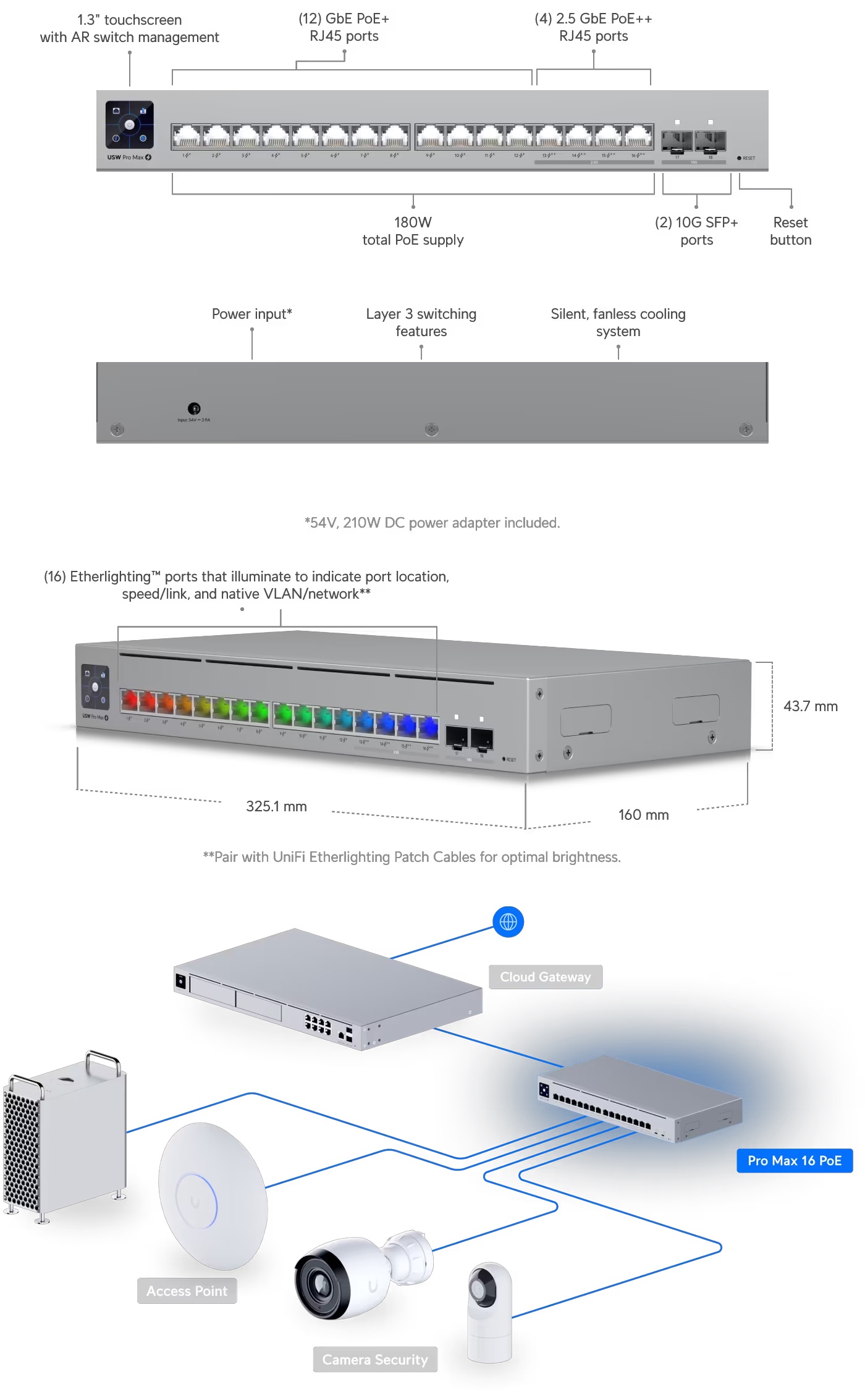

Product overview
