Ubiquiti Dream Machine Pro Max Cloud Gateway
$1,269.00
5 Gbps IPS · Multi-WAN · 1.3" Touchscreen
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti Dream Machine Pro Max Cloud Gateway
Key features
- 5 Gbps IPS
- Multi-WAN
- 1.3" Touchscreen
Manufacturer model: UDM-PRO-MAX
Specifications
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
|---|---|
| Weight | 4.7 kg (10.4 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz |
| System memory | 8 GB DDR4 |
| On-board storage | 32 GB eMMC |
| Management interface | Ethernet |
| Networking interface | LAN: |
| IDS/IPS throughput | 5 Gbps* |
| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -10° to 40° C (14° to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Performance | Redundant WAN with failover and load balancing |
| Next-generation security | Application-aware firewall rules |
| Advanced networking | License-free SD-WAN |
| Ethernet | Green: link/activity |
| SFP+ | Green: link/activity |
| HDD | White: disk activity |
| RPS | Blue: ready |

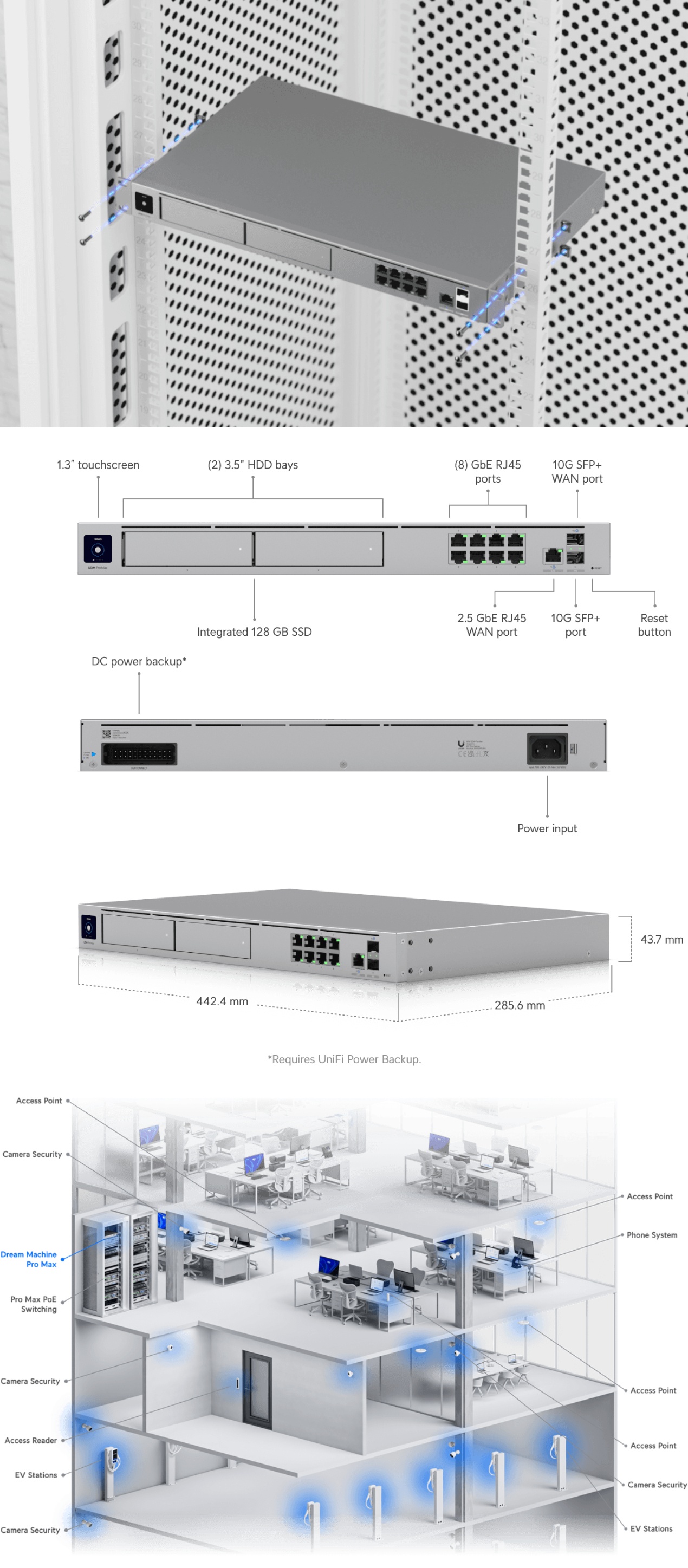

Product overview
