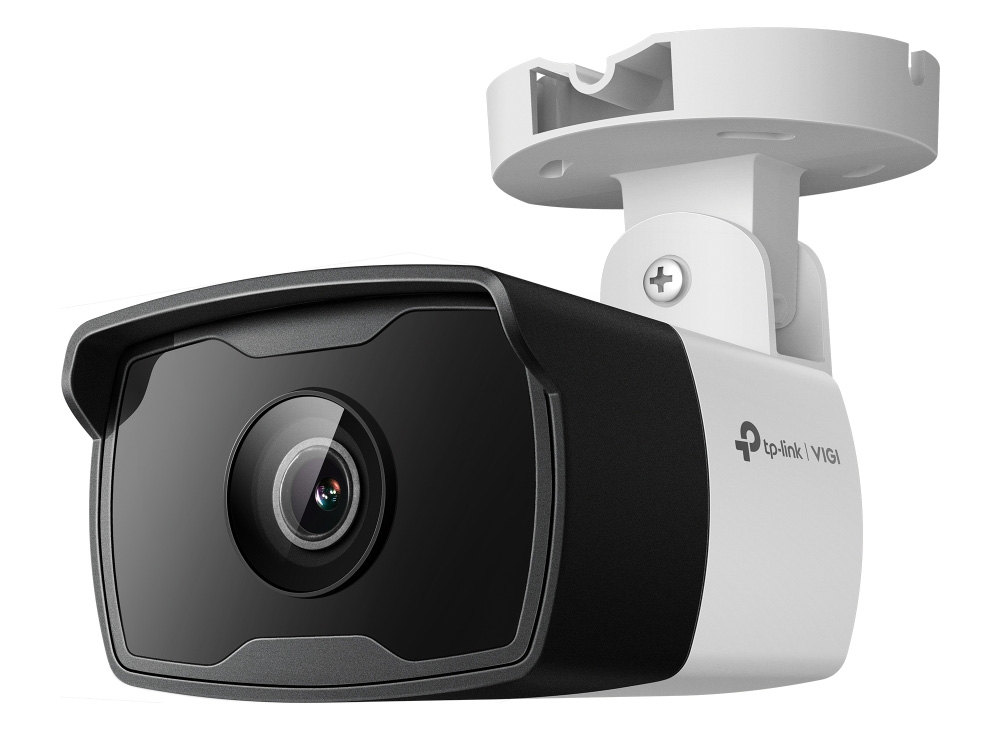

TP-Link VIGI C340I (4mm) VIGI 4MP Outdoor IR Bullet Network Camera
$69.00
4MP · Smart Detection · Waterproof
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
TP-Link VIGI C340I (4mm) VIGI 4MP Outdoor IR Bullet Network Camera
Key features
- 4MP
- Smart Detection
- Waterproof
Manufacturer model: VIGI C340I(4mm)
Specifications
| Camera Type | Security |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | 2.8 mm: F2.2 |
| Lens | 2.8 mm/ 4 mm/ 6 mm |
| Lens Mount | M12 |
| Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Weatherproof Rating | IP67 |
| IR Working Distance | 30m |
| Viewing Angle | 2.8mm: 88.8°/48.9°/106.5°(H/V/D) |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm/4 mm/6 mm |
| Aperture | 2.8 mm: F2. 2 |
| FOV | 2.8 mm: |
| DORI Distance | 2.8 mm: |
| Range | Pan: -90° to 90° |
| IR LED | Quantity: 2 |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2560 × 1440 |
| Main Stream | Frame Rate： |
| Sub-Stream | Frame Rate： |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | N/A |
| Audio Input | N/A |
| Audio Output | N/A |
| Audio Compression | N/A |
| Audio Sampling Rate | N/A |
| Environment Noise Filtering | N/A |
| Audio Bit Rate | N/A |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network Storage | NAS (NFS, SMB/ CIFS) |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| Button | – |
| Video Output | – |
| On-board Storage | N/A |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera |
| Dimensions( H X W X D ) | 174 × 74 × 71 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight | 0.2 Kg |
| Gross Weight | 0.35 Kg |
| Power Consumption | 12V DC: Max 5W |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 73× 174 × 71 mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
| Frame Rate & Resolutions | Main Stream: |
| Max. Resolution | 4MP (2560 × 1440) |
| Video Streaming | Main Stream |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |

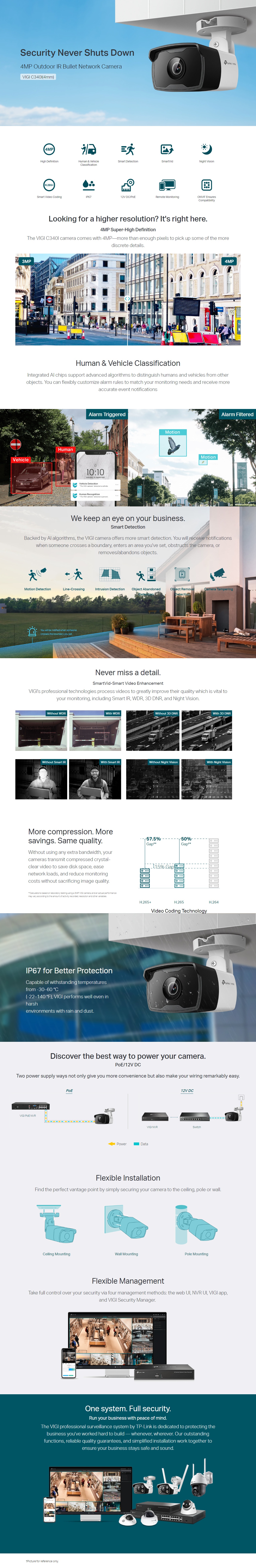

Product overview
