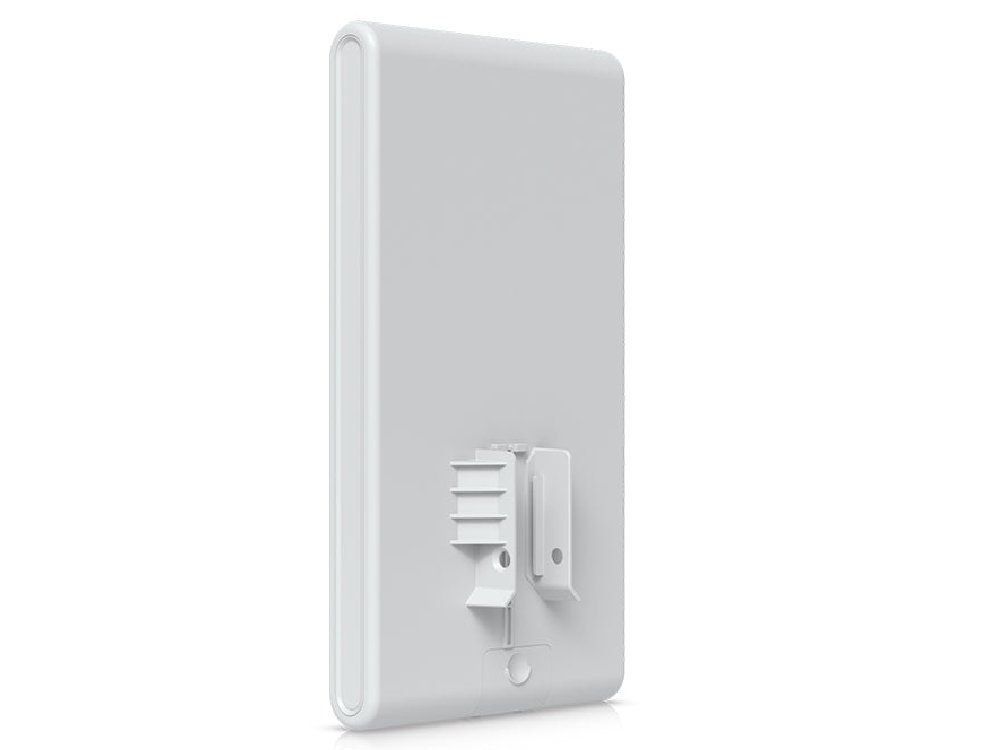

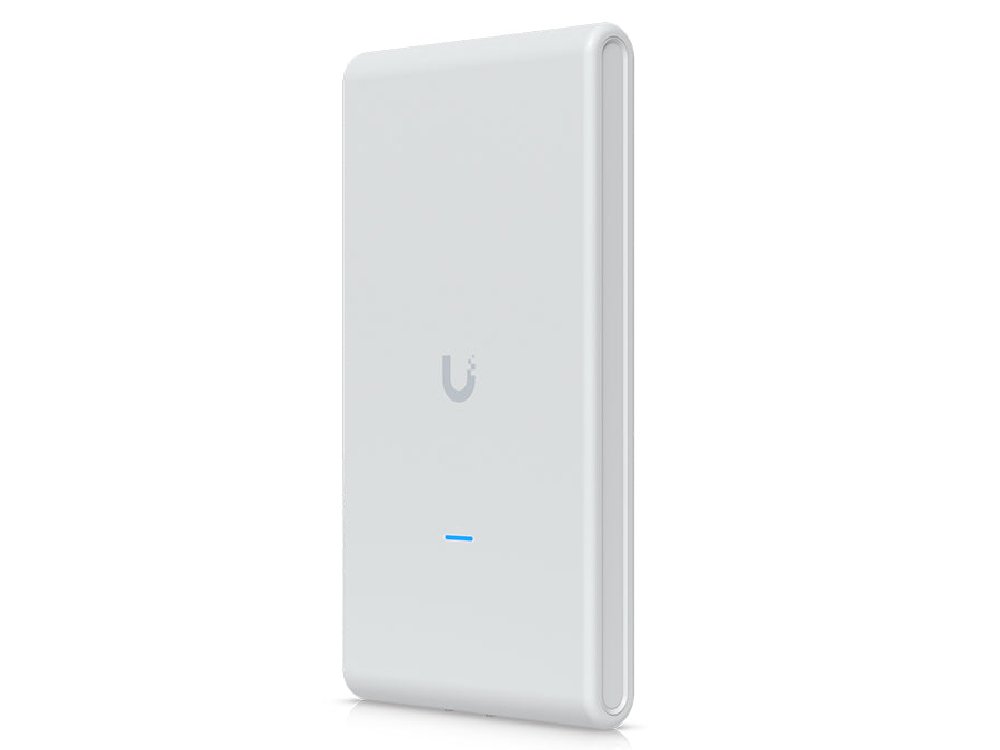

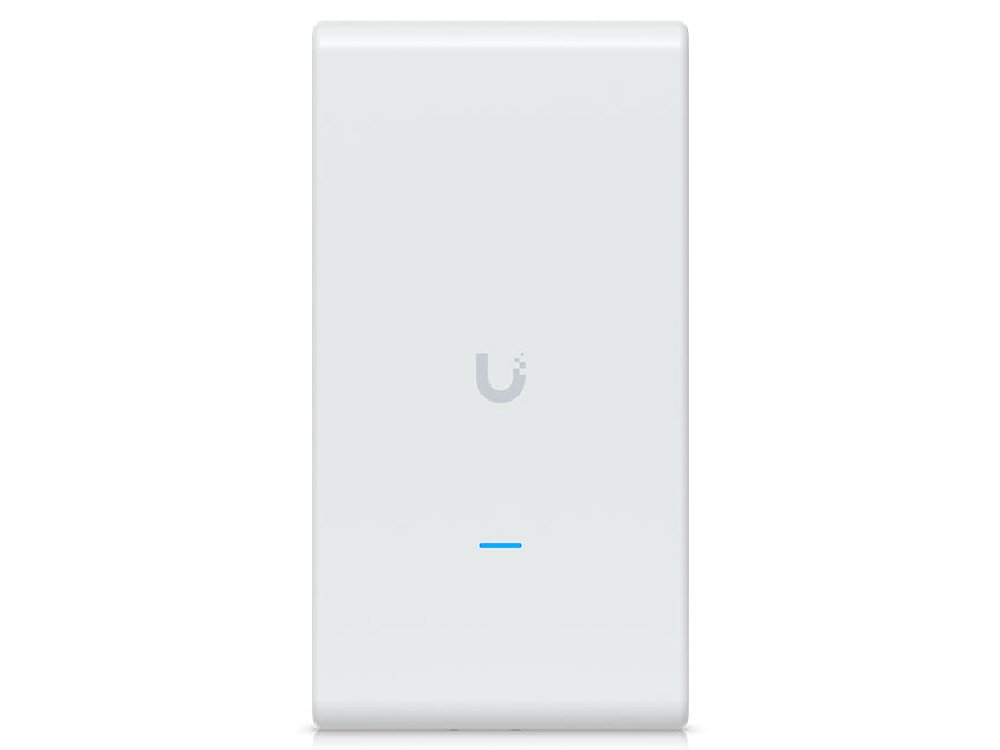

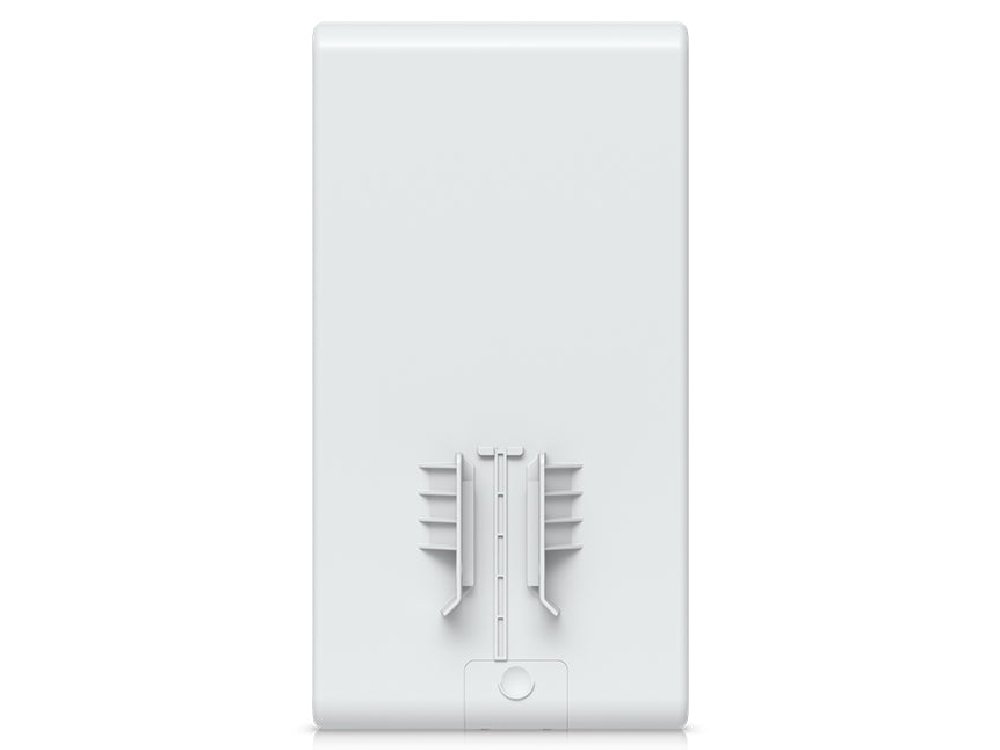

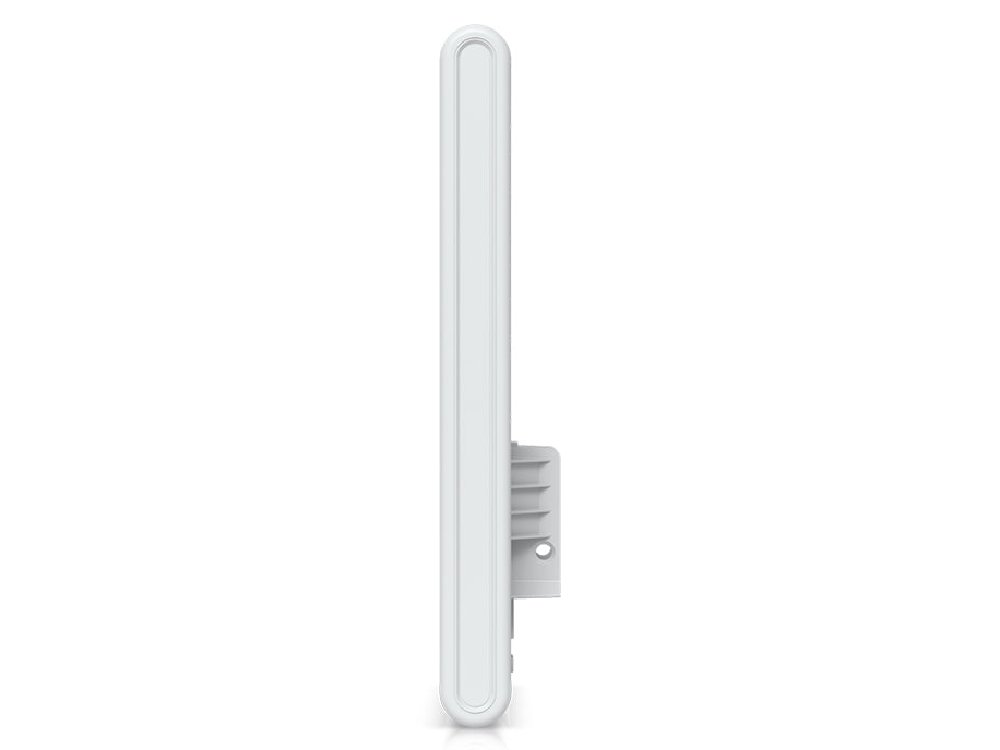

Ubiquiti U6-Mesh-Pro Wi-Fi 6 Indoor/Outdoor Mesh Pro Access Point
$429.00
Wi-Fi 6 · 4 Spatial Streams
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti U6-Mesh-Pro Wi-Fi 6 Indoor/Outdoor Mesh Pro Access Point
Key features
- Wi-Fi 6
- 4 Spatial Streams
Manufacturer model: U6-Mesh-Pro
Specifications
| Access Point | Yes |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Weight | 819 g (1.8 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Aluminum alloy, steel |
| Pole mount diameter | 1~2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE switch |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 9W |
| 2.4 GHz | 22 dBm |
| 5 GHz | 27 dBm |
| 6 GHz | – |
| 2.4 GHz | 2 x 2 (DL/UL MU MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 573.5 Mbps (BW40) |
| 5 GHz | 2.4 Gbps (BW160) |
| 2.4 GHz | 8 dBi |
| 5 GHz | 8 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15 , HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| UniFi Network | Version 8.1.127 and later |

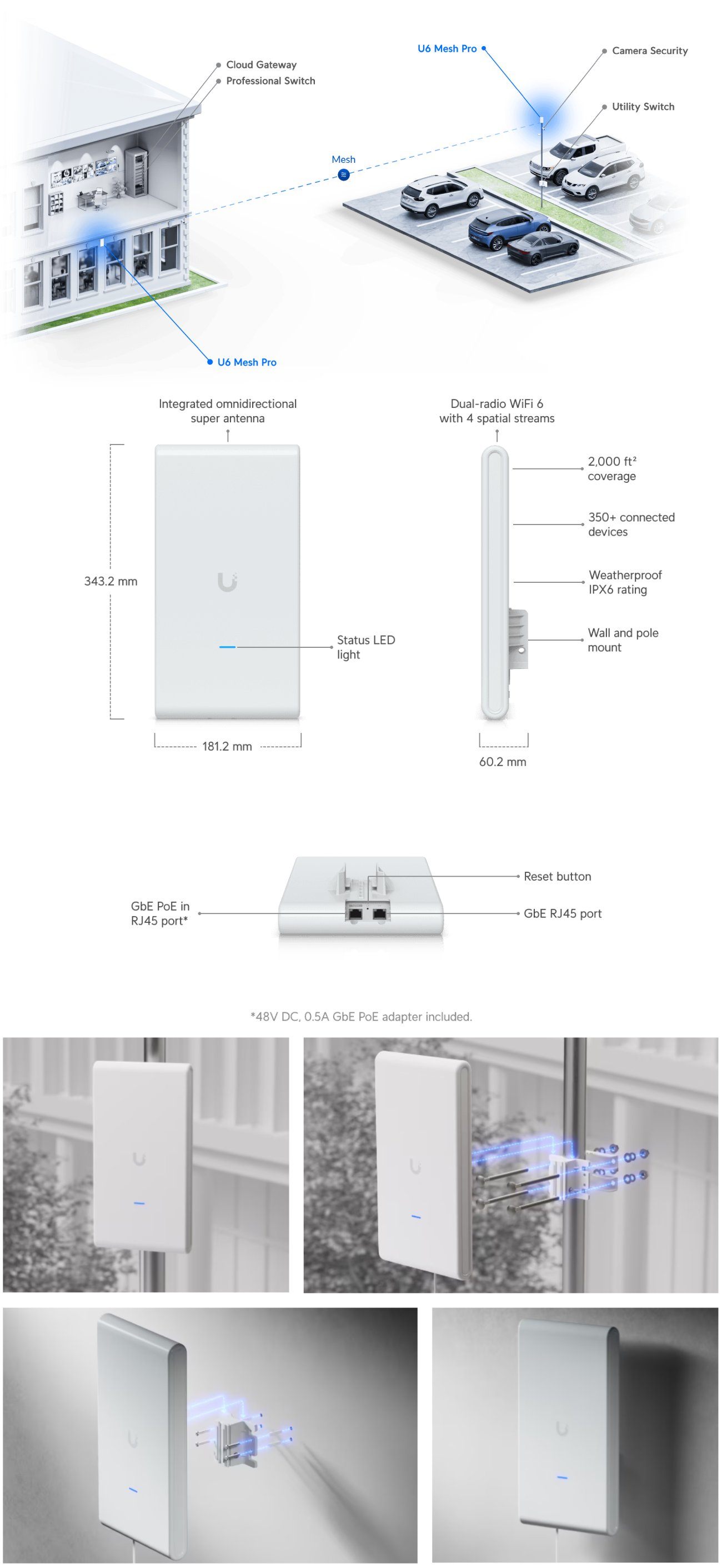

Product overview
