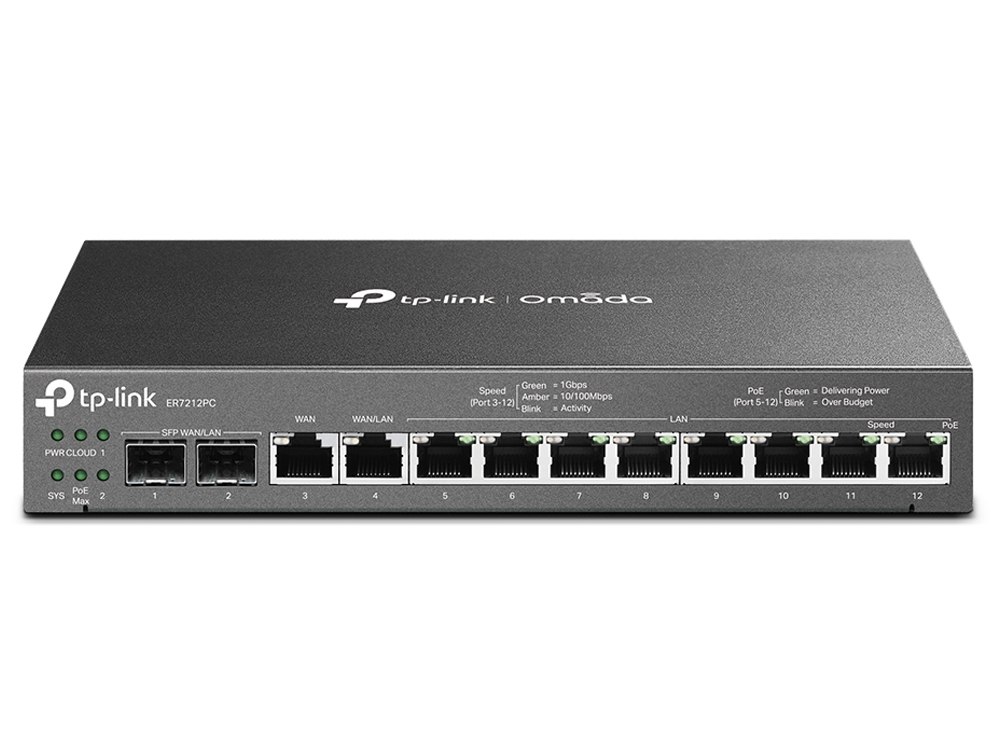

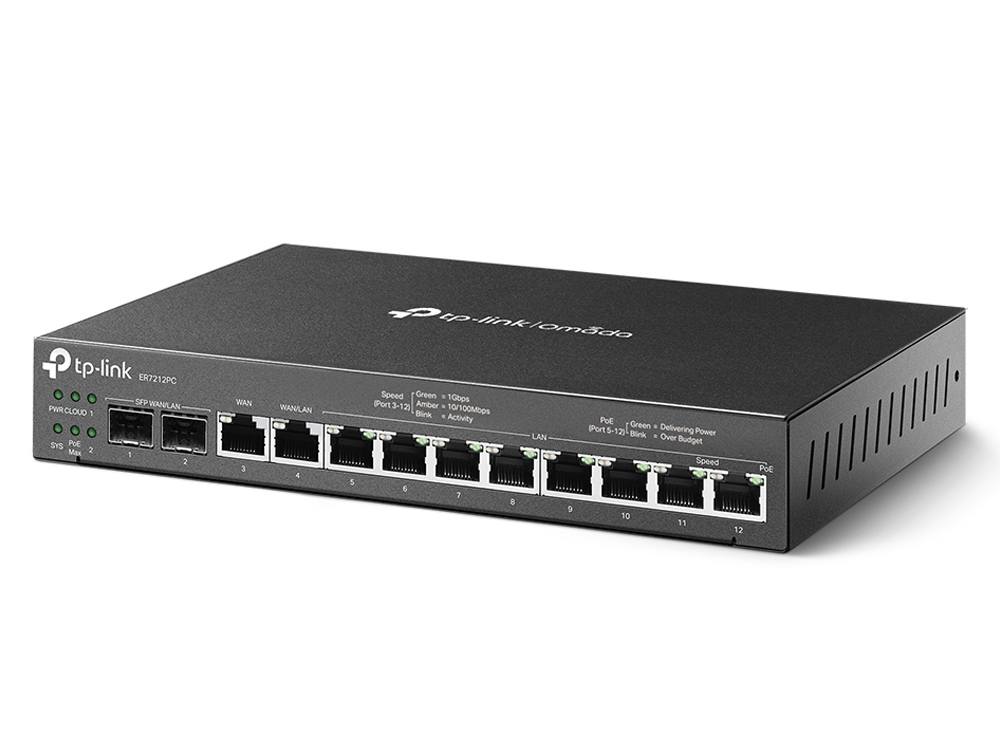

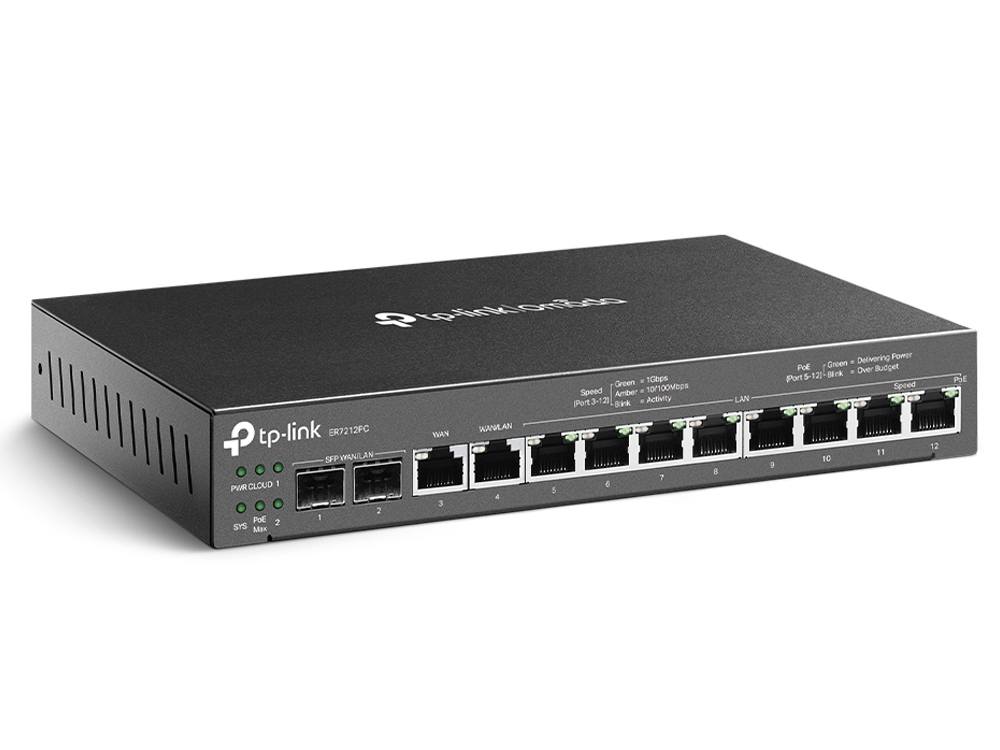

TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router
$593.00
3-in-1 · Dual-Core CPU · 110W PoE Budget
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
TP-Link ER7212PC Omada 3-in-1 Gigabit VPN Router
Key features
- 3-in-1
- Dual-Core CPU
- 110W PoE Budget
Manufacturer model: ER7212PC
Specifications
| Router | Yes |
|---|---|
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q |
| Interface | • 2 Gigabit SFP WAN/LAN ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 53.5VDC/2.43A Adapter |
| PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
| Flash | 8Mb Nor + 4 GB EMMC |
| DRAM | 1 GB DDR3 |
| LED | PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| Max Power Consumption | • 133.2W with PoE Max |
| Concurrent Session | 24,980 |
| New Sessions /Second | 1,900 |
| NAT (Static IP) | 935.5 Mbps / 942.1 Mbps |
| NAT(DHCP) | 940.2 Mbps / 941.7 Mbps |
| NAT(PPPoE) | 913.1 Mbps / 935.2 Mbps |
| NAT (L2TP) | 545.0 Mbps / 912.7 Mbps |
| NAT (PPTP) | 523.0 Mbps / 912.8 Mbps |
| IPsec VPN Throughput (AES256) | 168.5 Mbps |
| IPsec VPN Throughput | AES256: 168.5 Mbps |
| OpenVPN | 34 Mbps |
| L2TP VPN Throughput | • Unencrypted: 845.3 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1012.6 Mbps |
| 66 Byte Packet forwarding rate | 154,069 pps / 156,977 pps |
| 1,518 Byte Packet forwarding rate | 81,193 pps / 81,193 pps |
| WAN Connection Type | • Static IP |
| MAC Clone | Modify WAN MAC Address |
| DHCP | • DHCP Server |
| IPv6 | support |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance |
| NAT | • Multi-Net NAT |
| Session Limit | IP-based Session Limit |
| SSL VPN | – |
| IPsec VPN | • 20 IPSec VPN Tunnels |
| PPTP VPN | • PPTP VPN Server |
| L2TP VPN | • L2TP VPN Server |
| OpenVPN | • OpenVPN Server |
| Filtering | URL Filtering |
| ARP Inspection | – |
| Attack Defense | • TCP/UDP/ICMP Flood Defense |
| Access Control | Source/Destination IP Based Access Control |
| Web Authentication | • No Authentication |
| Omada App | Yes |
| Centralized Management | Management of up to 2 Omada switches, and 10 Omada access points |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Maintenance | • Web Management Interface |
| Zero-Touch Provisioning | – |
| Management Features | • Automatic Device Discovery |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7212PC |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 |
| Environment | • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F) |

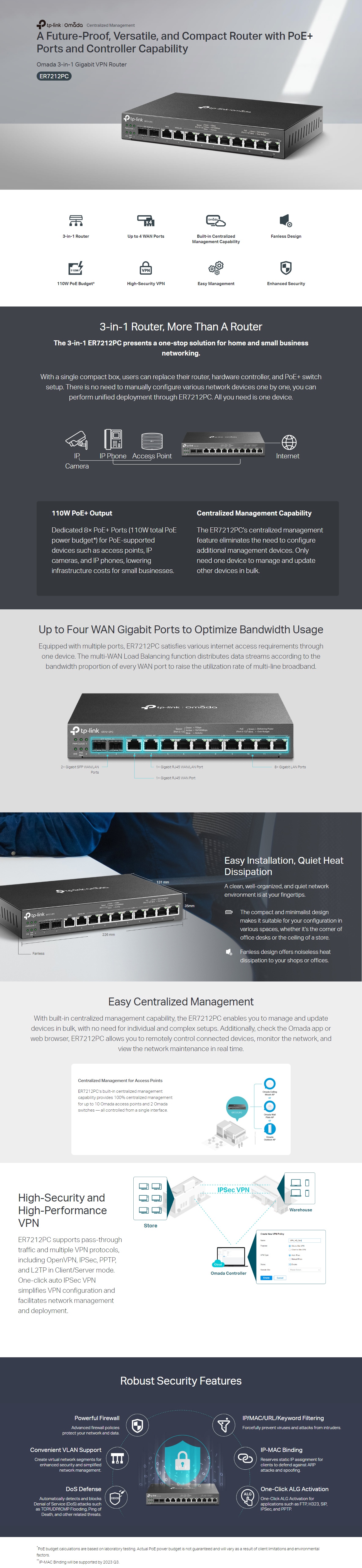

Product overview
