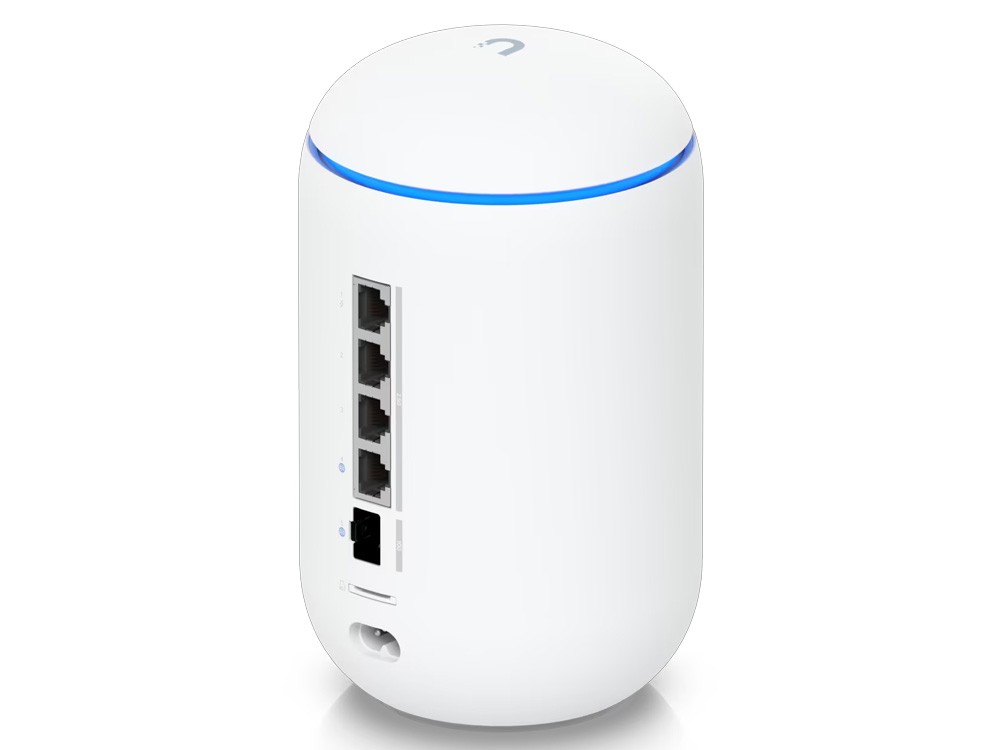

Ubiquiti Dream 7 UDR7 WiFi 7 10G Cloud Gateway Router
$569.00
WiFi 7 · 10G Cloud Gateway
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti Dream 7 UDR7 WiFi 7 10G Cloud Gateway Router
Key features
- WiFi 7
- 10G Cloud Gateway
Manufacturer model: UDR7
Specifications
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
|---|---|
| Network | Yes |
| Protect | Yes |
| Access | Yes |
| Talk | Yes |
| Connect | Yes |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD (2) 2K (1) 4K |
| Simultaneous Users Connected | 300+ |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |

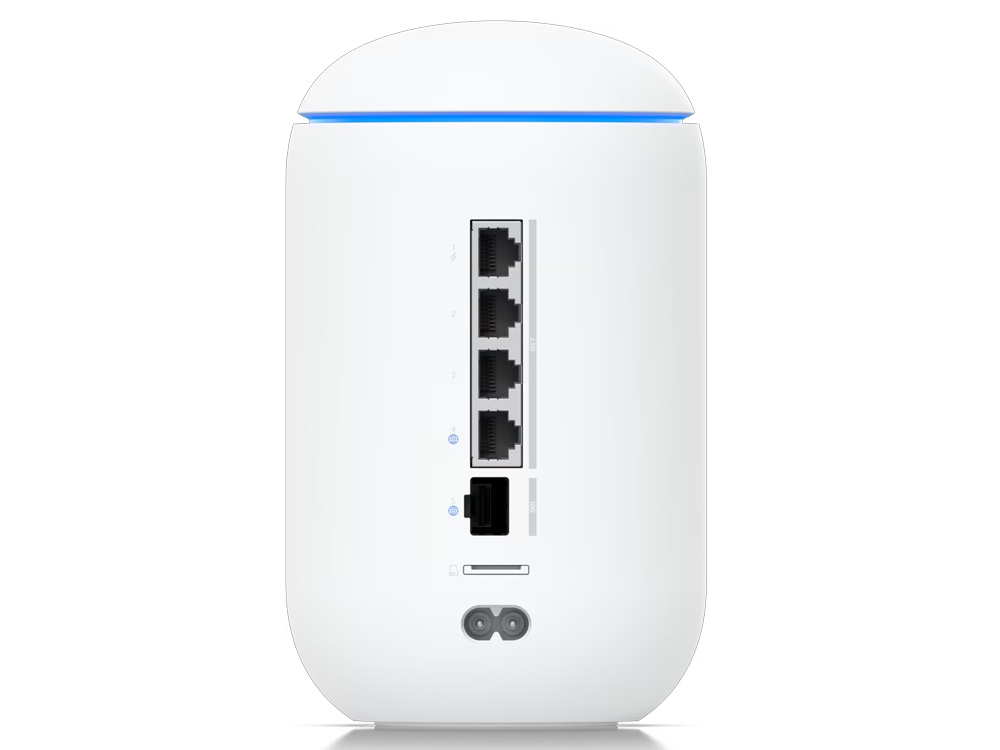

| LAN Ports | (3) 2.5 GbE RJ45 including (1) PoE |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| License-Free SD-WAN | Yes |
| Site Magic | Yes |
| IPsec | Yes |
| OpenVPN | Yes |
| Identity Endpoint One-Click VPN | Yes |
| Teleport Zero-Configuration VPN | Yes |
| WireGuard | Yes |
| L2TP | Yes |
| Multi-WAN Load Balancing | Yes |
| OSPF | Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 2,000 |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 6 dBi |
| 5 GHz | 7 dBi |
| 2.4 GHz | 5 dBi |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| NVR Storage | Pre-installed 64GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44-57V |
| Max. Power Consumption | 26W (Excluding PoE output) |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 50W |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |

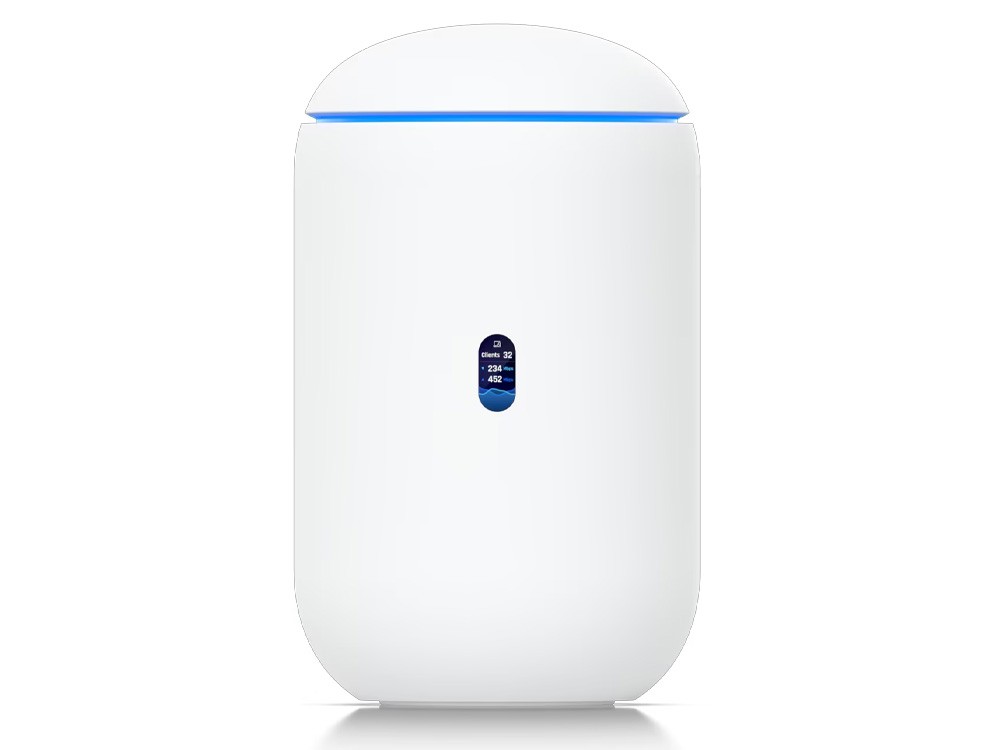

| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| System | Yes |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Button | (1) Factory-reset |
| VLAN | 802.1Q |
| Guest Traffic Isolation | Yes |
| UniFi Network | Version 9.0.108 and later |
Product overview
