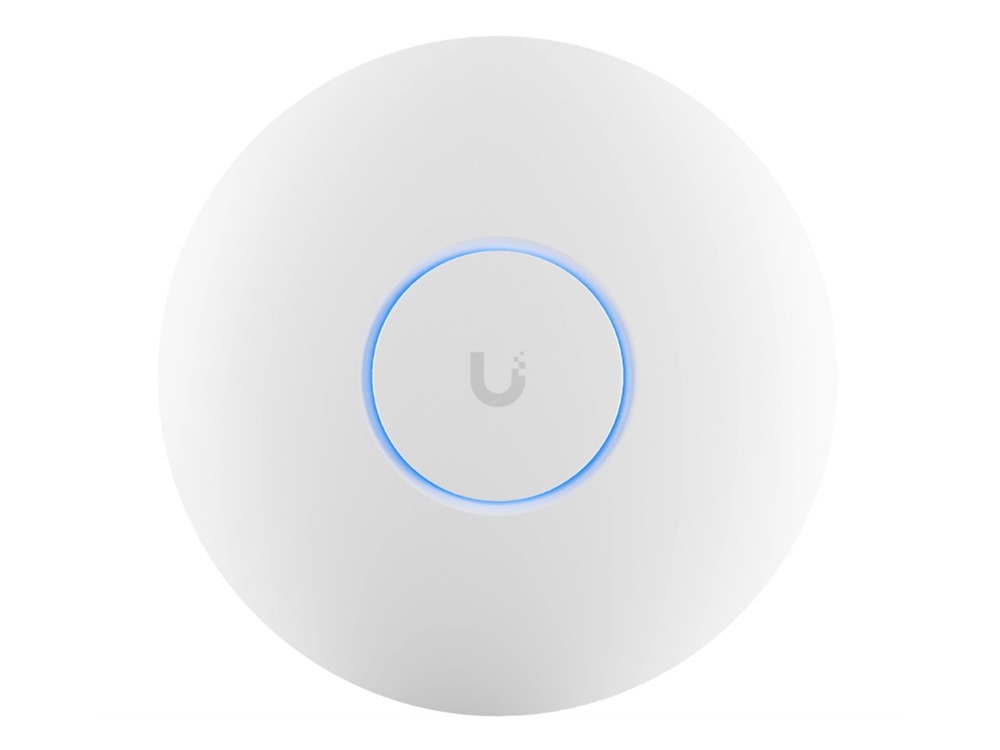

Ubiquiti U7 Pro Max WiFi 7 Access Point
$619.00
WiFi 7 · 8 Spatial Streams · 2.5 GbE uplink
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti U7 Pro Max WiFi 7 Access Point
Key features
- WiFi 7
- 8 Spatial Streams
- 2.5 GbE uplink
Manufacturer model: U7-PRO-MAX
Specifications
| Wi-Fi Speed | BE10000 |
|---|---|
| Mechanical | / |
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") / |
| Weight | 680 g (1.5 lb) / |
| Enclosure material | Polycarbonate, aluminum / |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) / |
| Hardware | / |
| Networking interface | (1) 1/2.5 GbE RJ45 port / |
| Management interface | Ethernet / |
| Power method | PoE+ / |
| Power supply | UniFi PoE switch / |
| Supported voltage range | 44—57V DC / |
| Max. power consumption | 25W / |
| Max. TX power | / |
| 2.4 GHz | 23 dBm / |
| 5 GHz | 29 dBm / |
| 6 GHz | 23 dBm / |
| MIMO | / |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) / |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) / |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) / |
| Max. data rate | / |
| 2.4 GHz | 688 Mbps (BW40) / |
| 5 GHz | 8.6 Gbps (BW240) / |
| 6 GHz | 5.7 Gbps (BW320) / |
| Antenna gain | / |
| 2.4 GHz | 4 dBi / |
| 5 GHz | 6 dBi / |
| 6 GHz | 5.9 dBi / |
| LEDs | White/blue / |
| Button | Factory reset / |

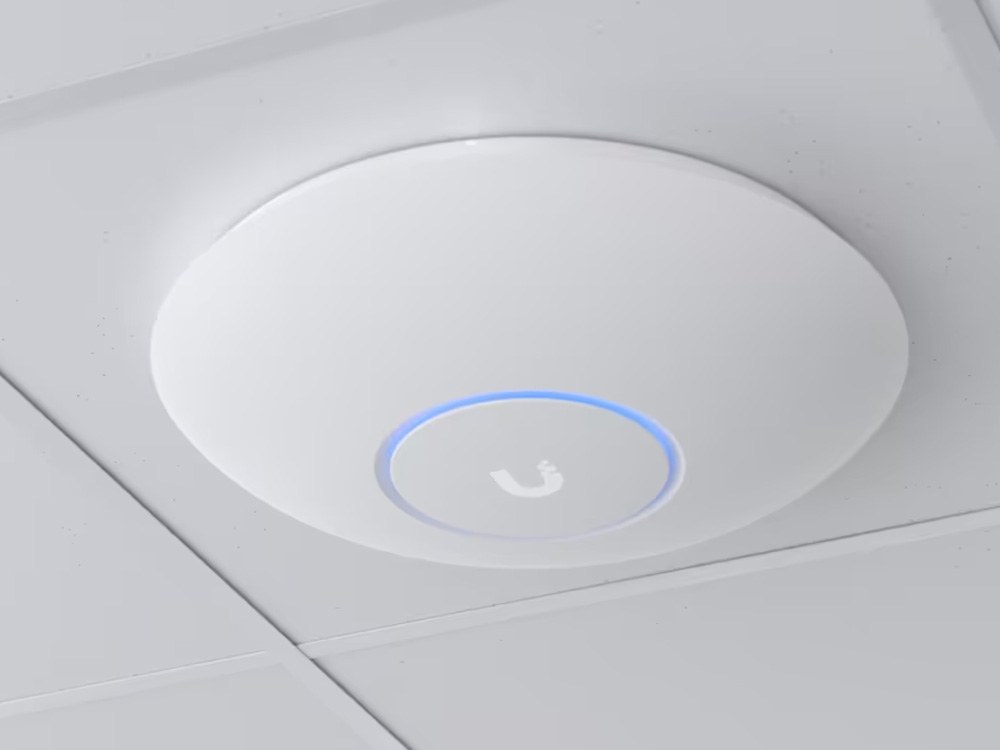

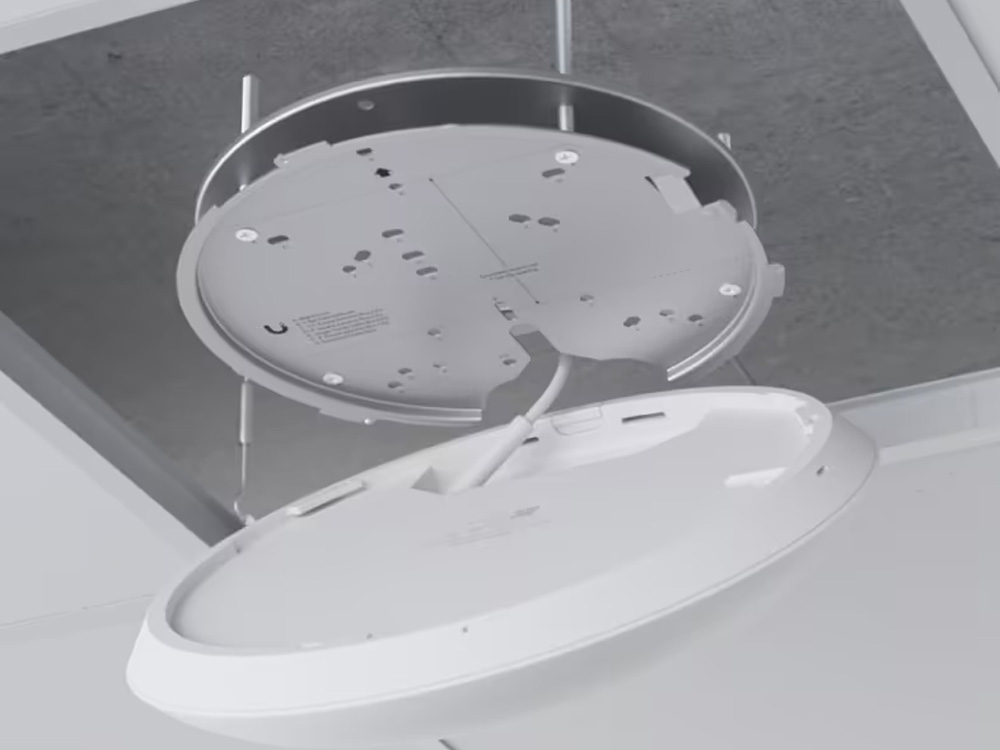

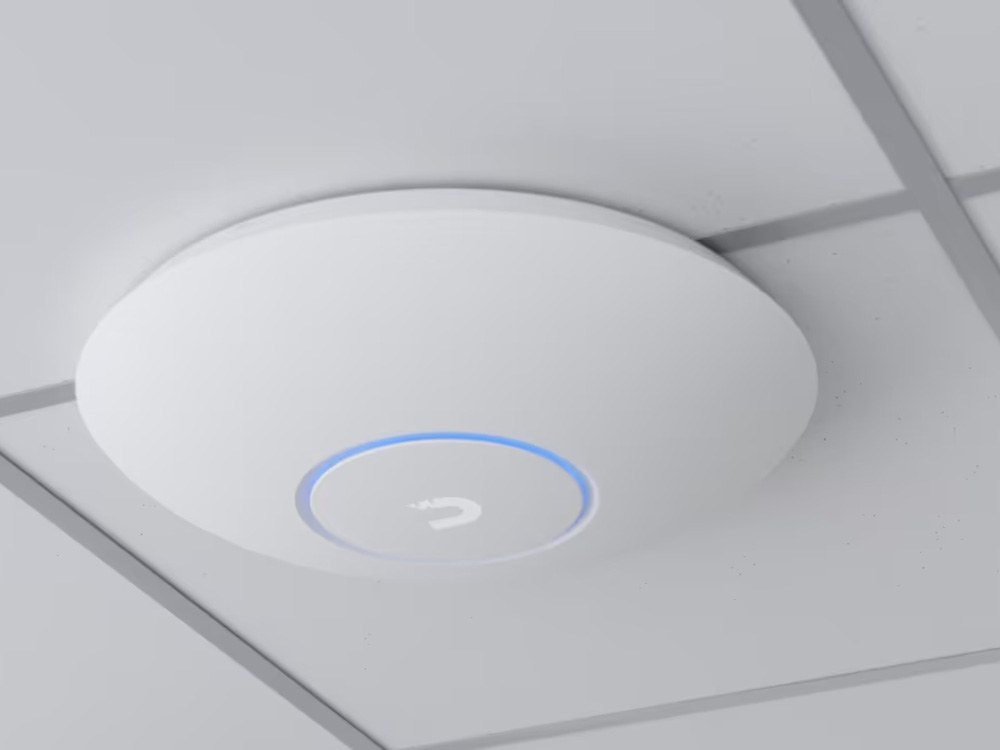

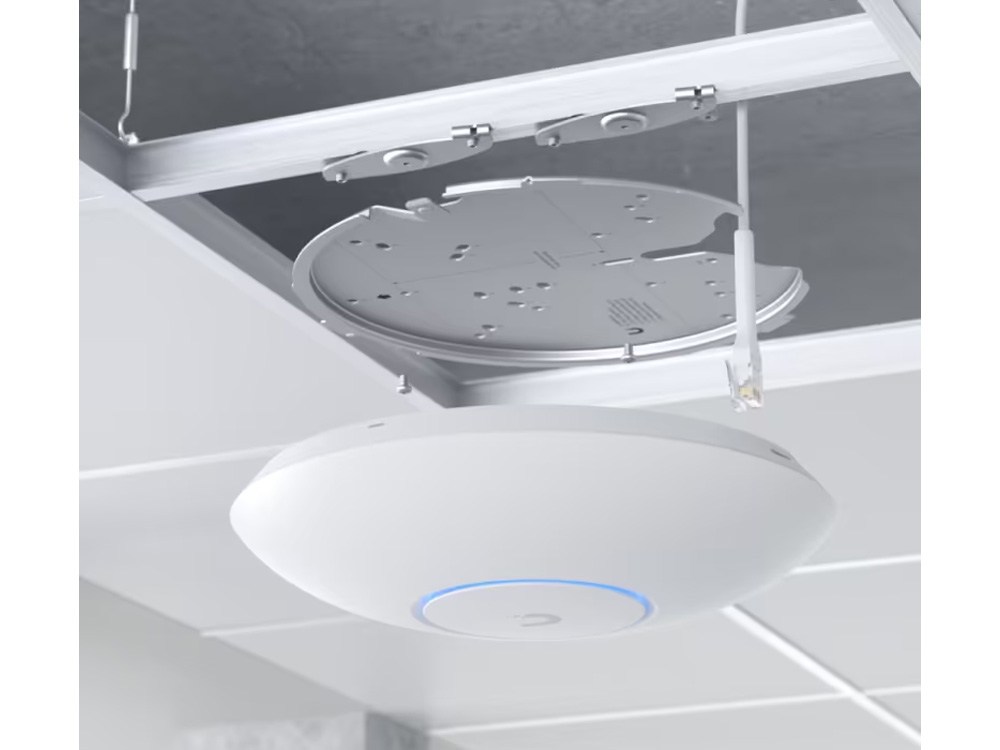

| Mounting | Wall, ceiling (Included) / |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) / |
| Ambient operating humidity | 5 to 95% noncondensing / |
| Certifications | CE, FCC, IC / |
| Software | / |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) / |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) / |
| BSSID | 8 per radio / |
| VLAN | 802.1Q / |
| Advanced QoS | Per-user rate limiting / |
| Guest traffic isolation | Supported / |
| Concurrent clients | 500+ / |
| Supported Data Rates | / |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps / |
| 802.11b | 1, 2, 5.5, 11 Mbps / |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps / |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) / |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) / |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) / |
| 802.11be (WiFi 7) | / |
| 5 GHz | 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) / |
| 6 GHz | 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) / |
| Application Requirements | / |
| UniFi Network | Version 8.2.93 and later / |

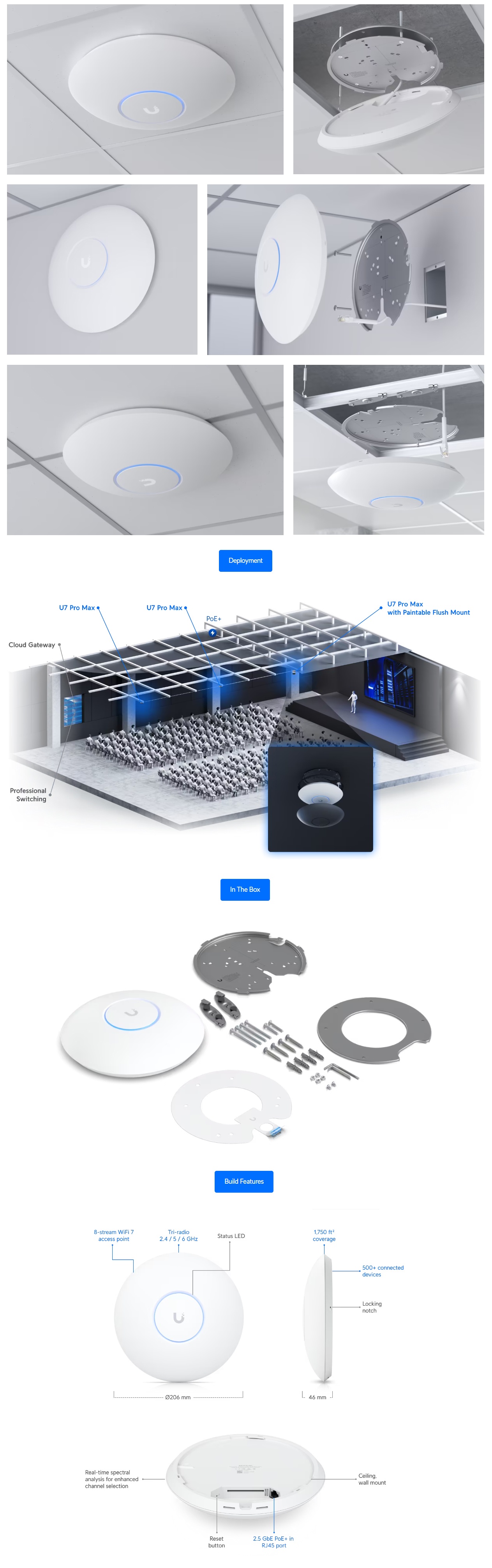

Product overview
