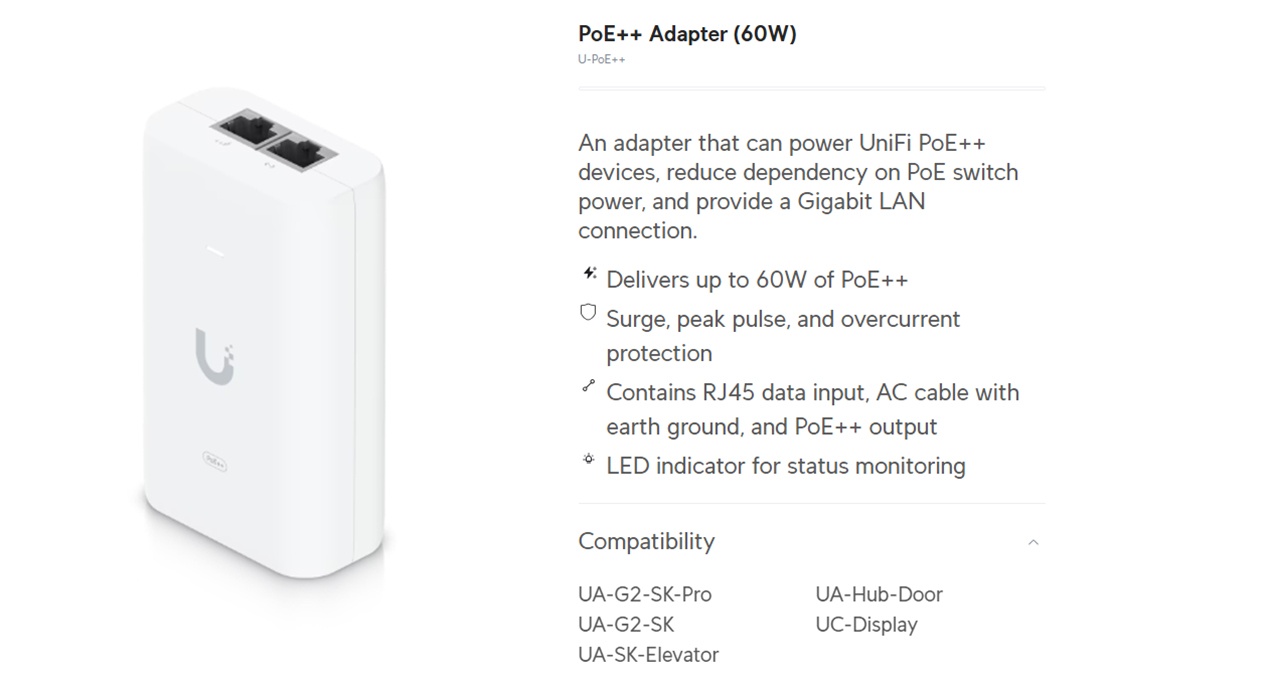

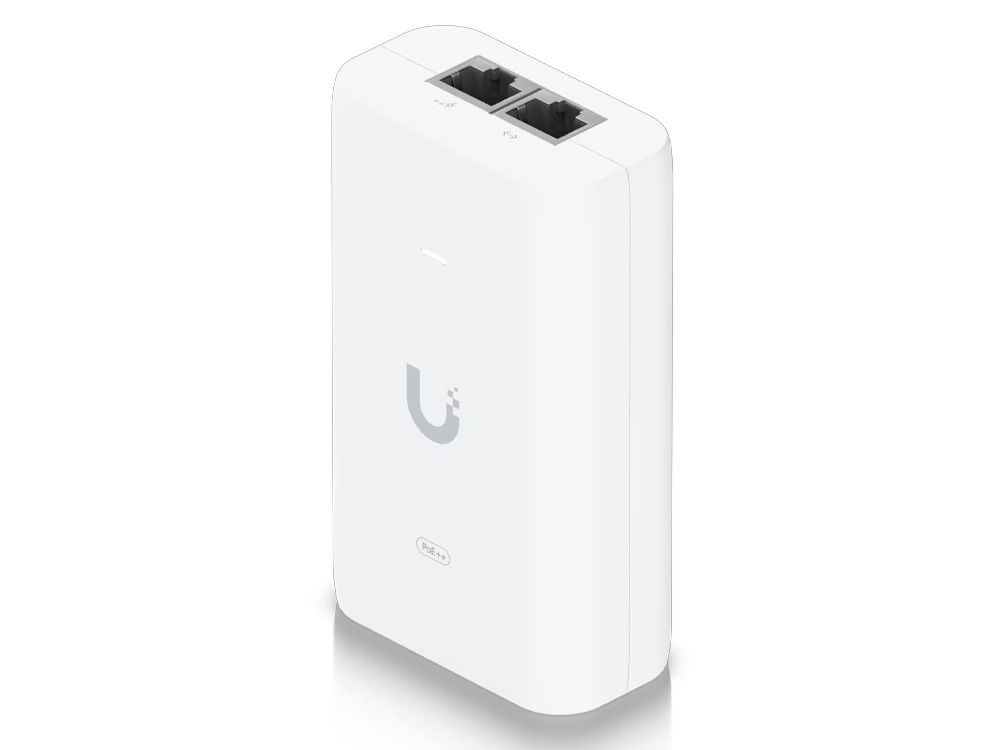

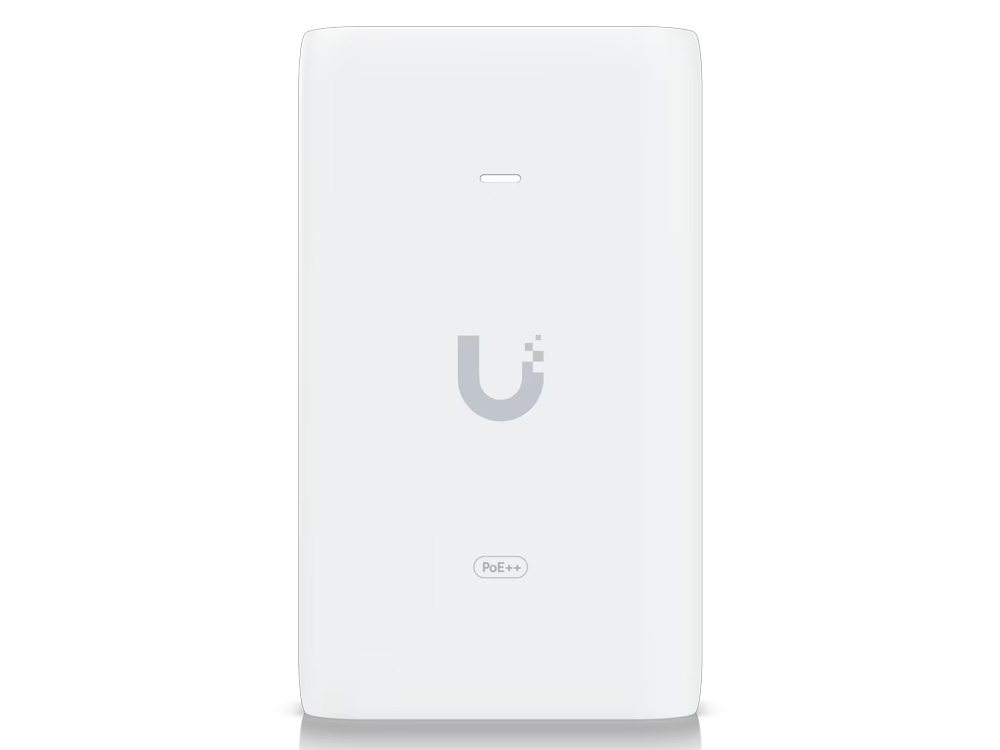

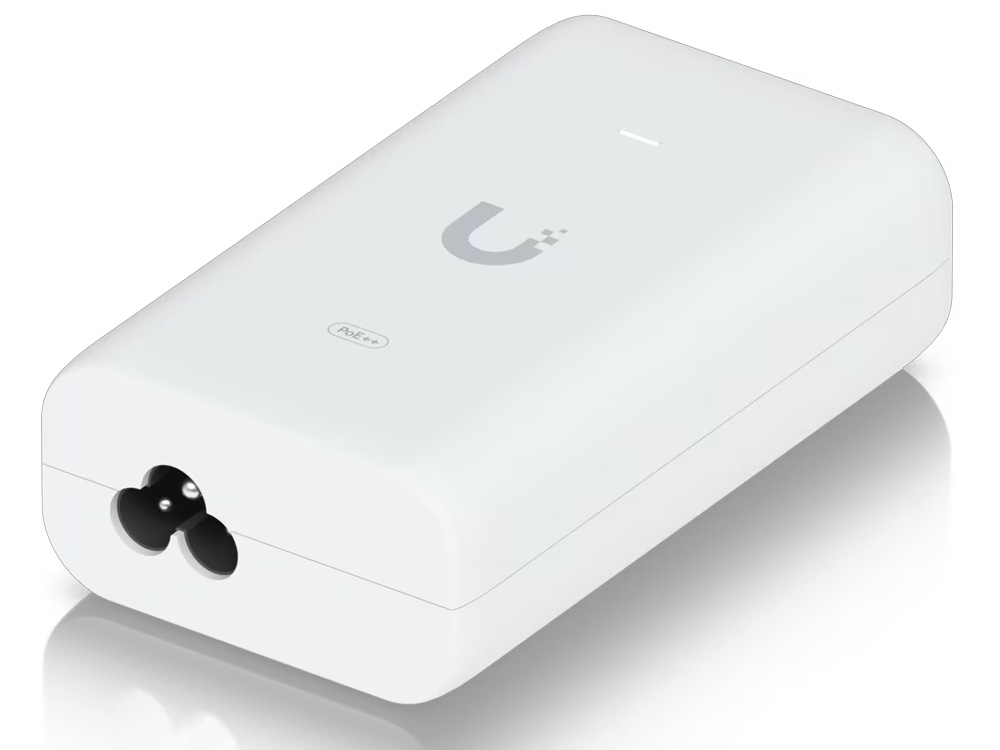

Ubiquiti 60W PoE++ Adapter
$65.00
60W · LED Indicator
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
Ubiquiti 60W PoE++ Adapter
Key features
- 60W
- LED Indicator
Manufacturer model: U-PoE++
Specifications
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
|---|---|
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC at 1.25A |
| Rated Voltage | 100—240V AC at 50/60Hz |
| LAN Activity Indicator | — |

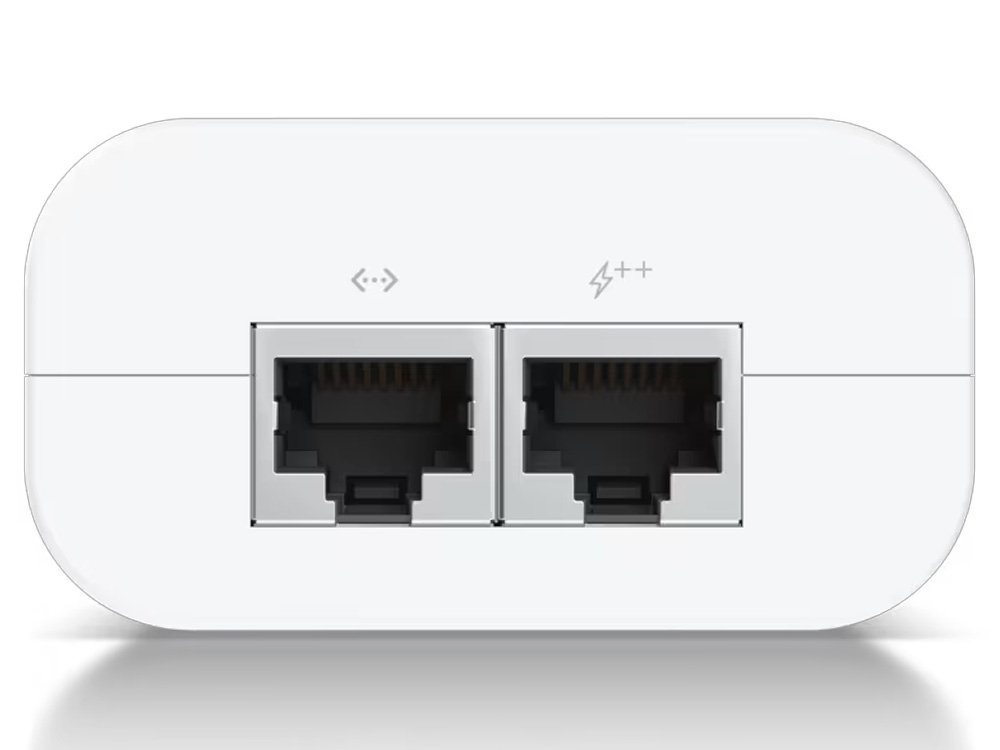

| Gigabit LAN Port | ✓ |
| Remote Reset Capability | — |
| Reset Button | — |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |

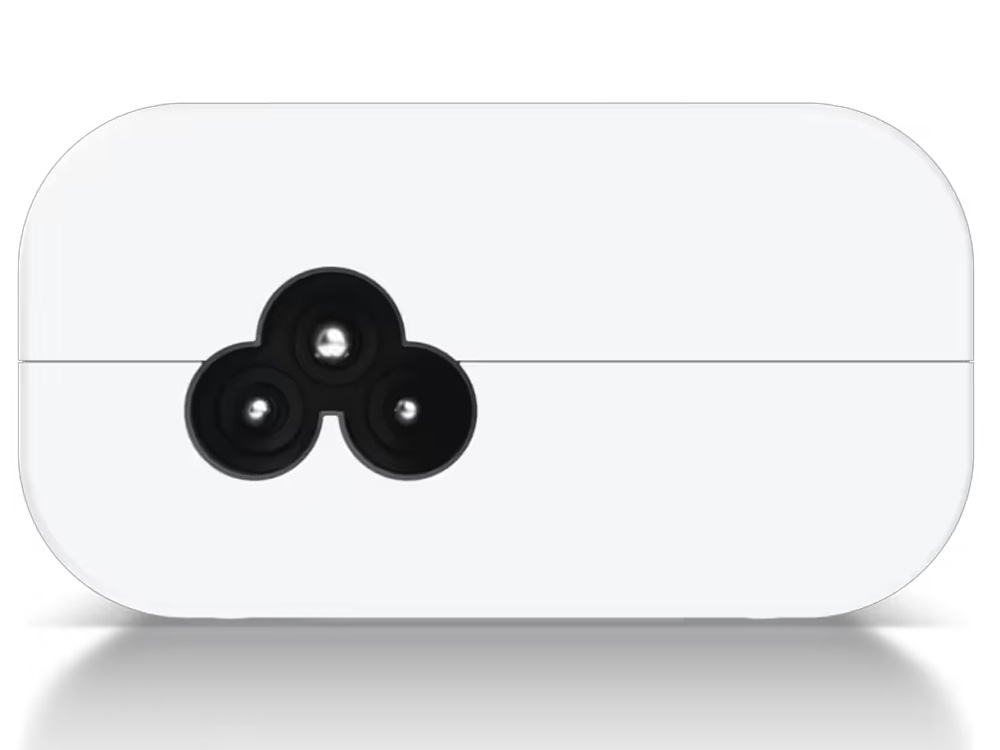

| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 1.3A @ 120V AC |
| Inrush Current | <100A peak @ 120V AC <200A peak @ 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Power Method | Universal AC input, 100—240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Supported Voltage Range | 100—240V AC |
| Surge Protection | Difference and Common Mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% Falsencondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
