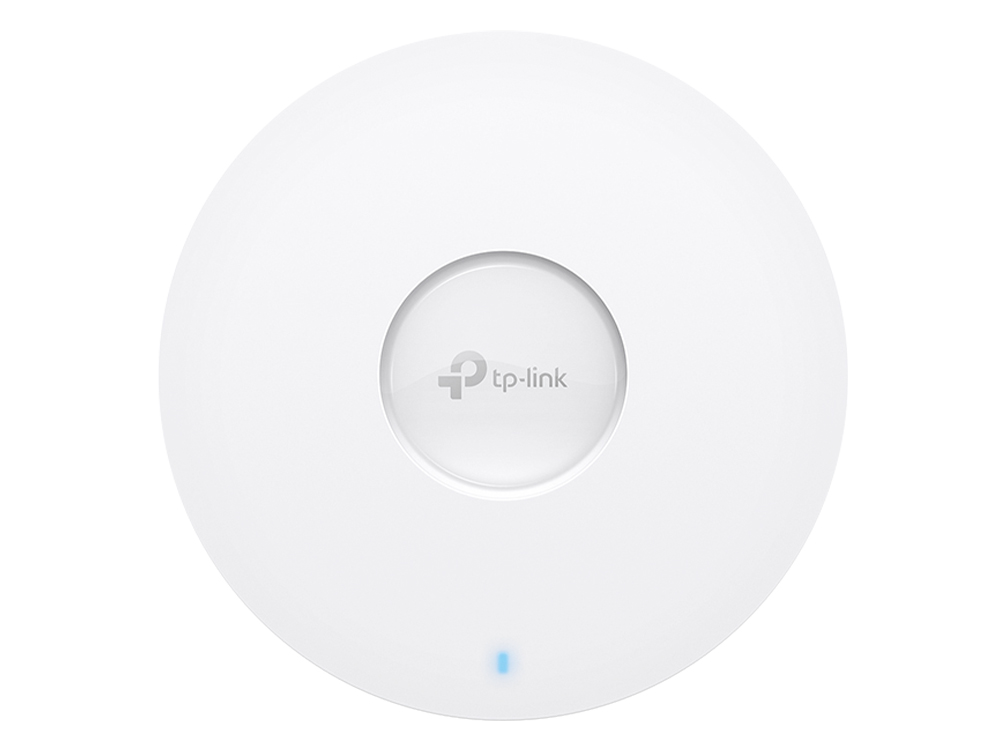

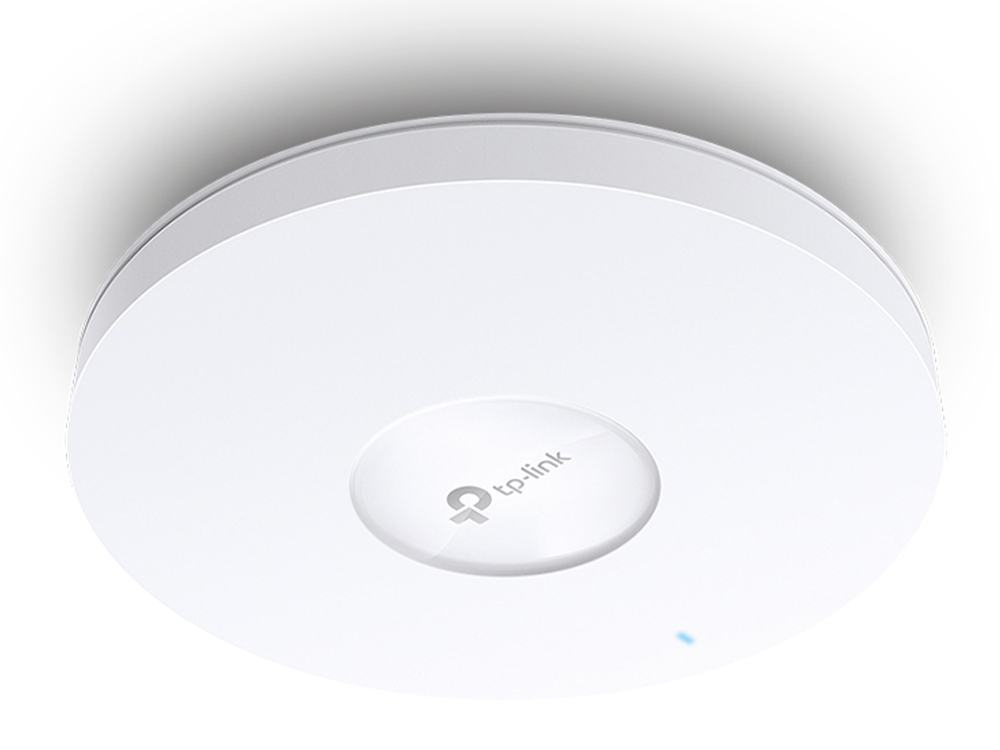

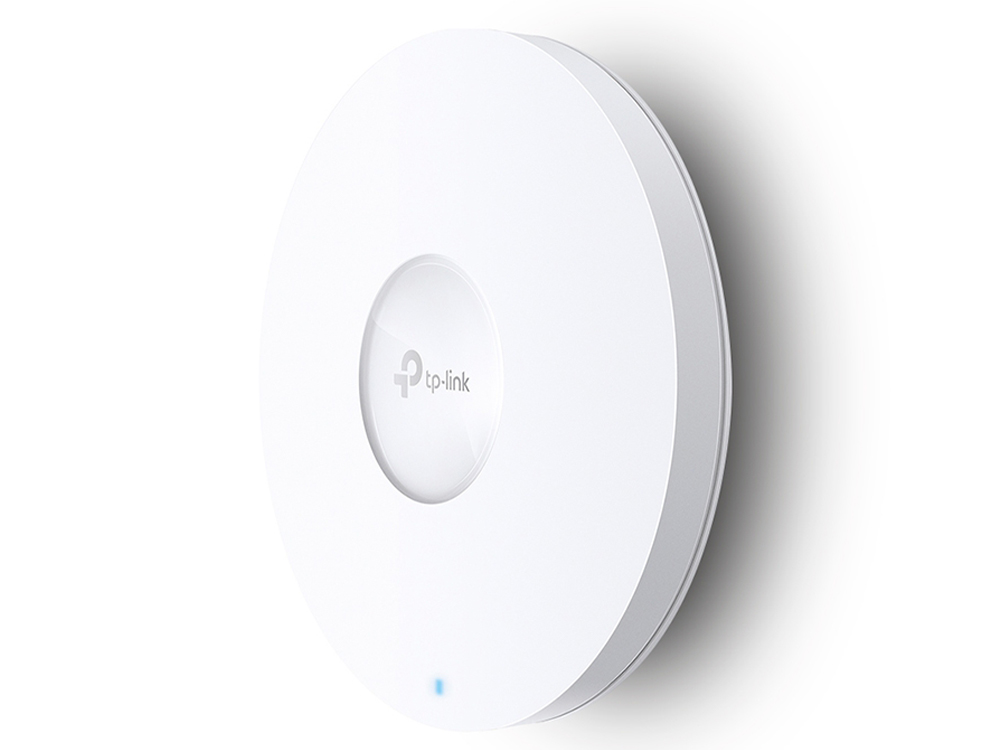

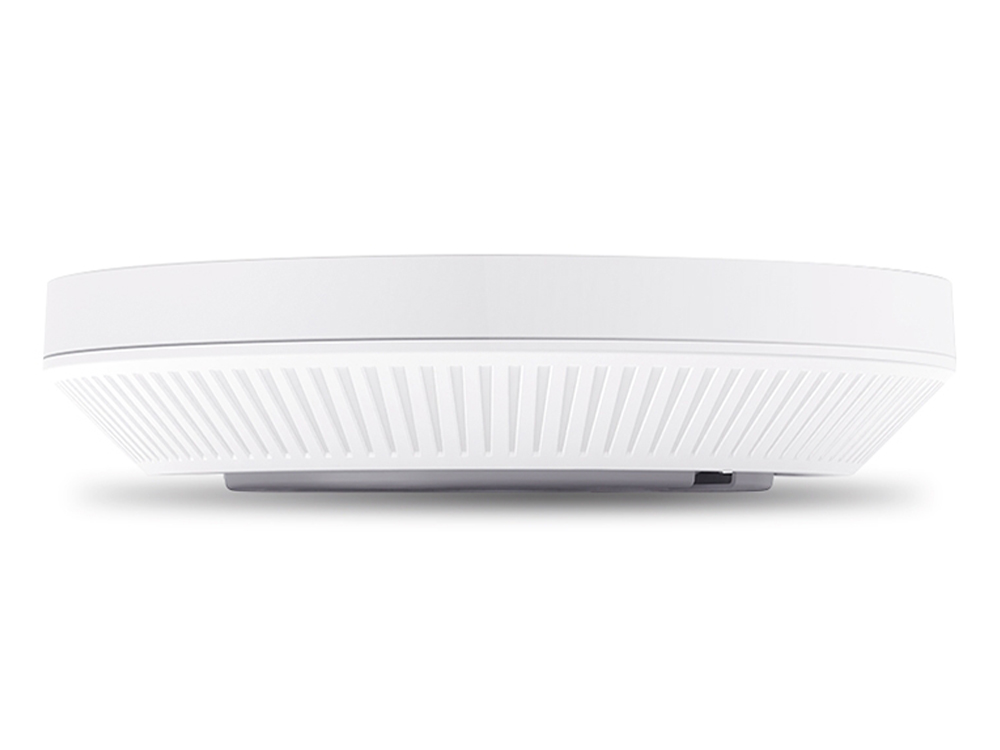

TP-Link EAP653 AX3000 Ceiling Mount WiFi 6 Access Point
$174.00
WiFi 6 · 160 MHz Channel · Ultra-Slim
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
TP-Link EAP653 AX3000 Ceiling Mount WiFi 6 Access Point
Key features
- WiFi 6
- 160 MHz Channel
- Ultra-Slim
Manufacturer model: EAP653
Specifications
| Wi-Fi Speed | AX3000 |
|---|---|

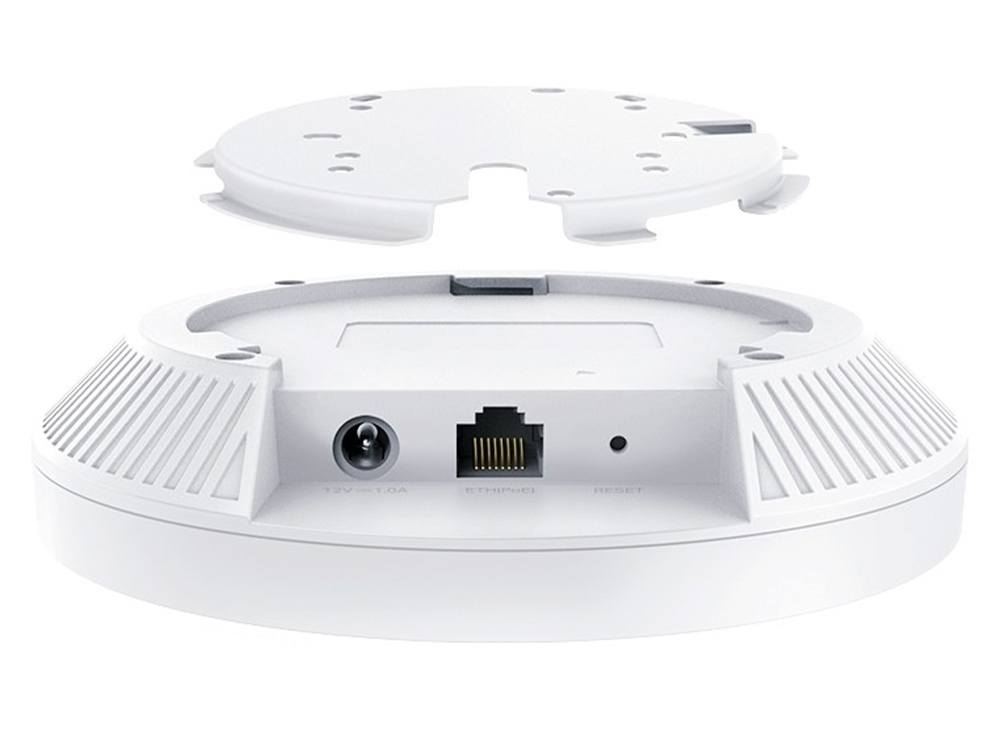

| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | EU: 48V Passive PoE or 802.3at PoE or 12V/1A DC |
| Power Consumption | • EU: 13.07 W |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni |

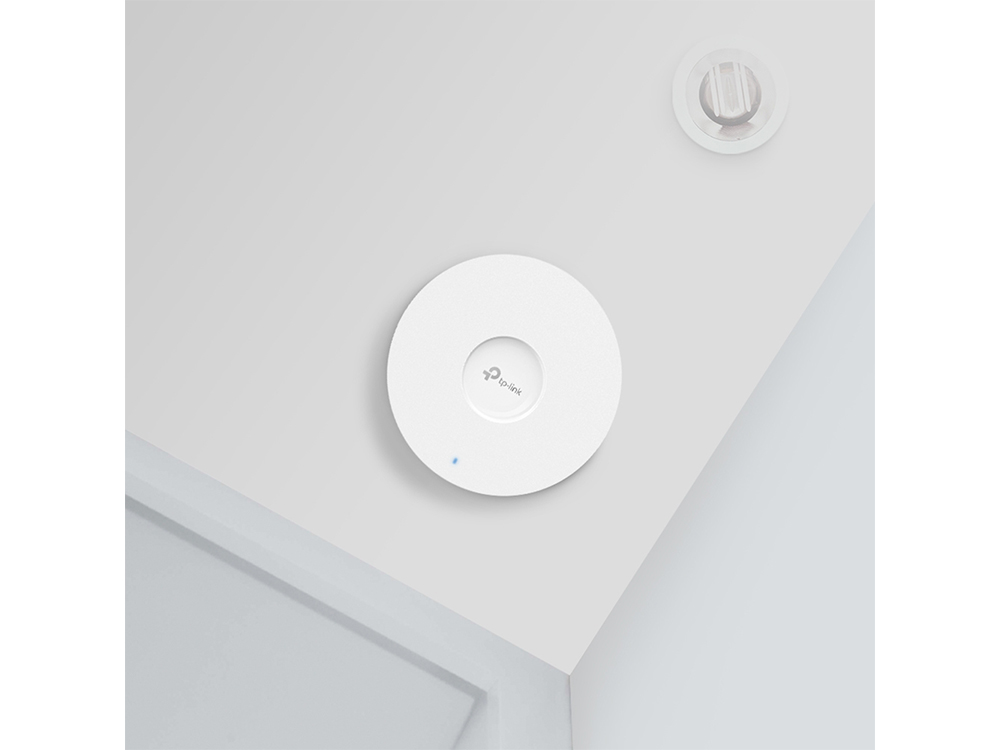

| Mounting | • Ceiling /Wall Mounting (Kits included) |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps† |
| Wireless Functions | • 1024-QAM |
| Wireless Security | • Captive Portal Authentication§ |
| Transmission Power | • CE: |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP653 |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |

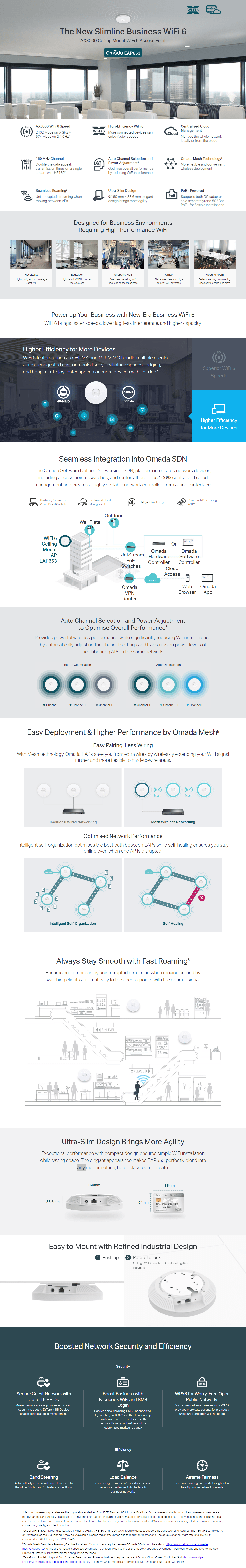

Product overview
