TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE
$109.00
5GHz · 300Mbps · 13dBi
2 in stock
Prices include GST. Delivery within Australia and local pickup are available.
Need advice? Contact the PCLINE team →
Need advice? Contact the PCLINE team →
Description
TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE
Key features
- 5GHz
- 300Mbps
- 13dBi
Manufacturer model: CPE510
Specifications
| Speed | 300Mbps |
|---|---|
| Range Extender | Yes |
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |

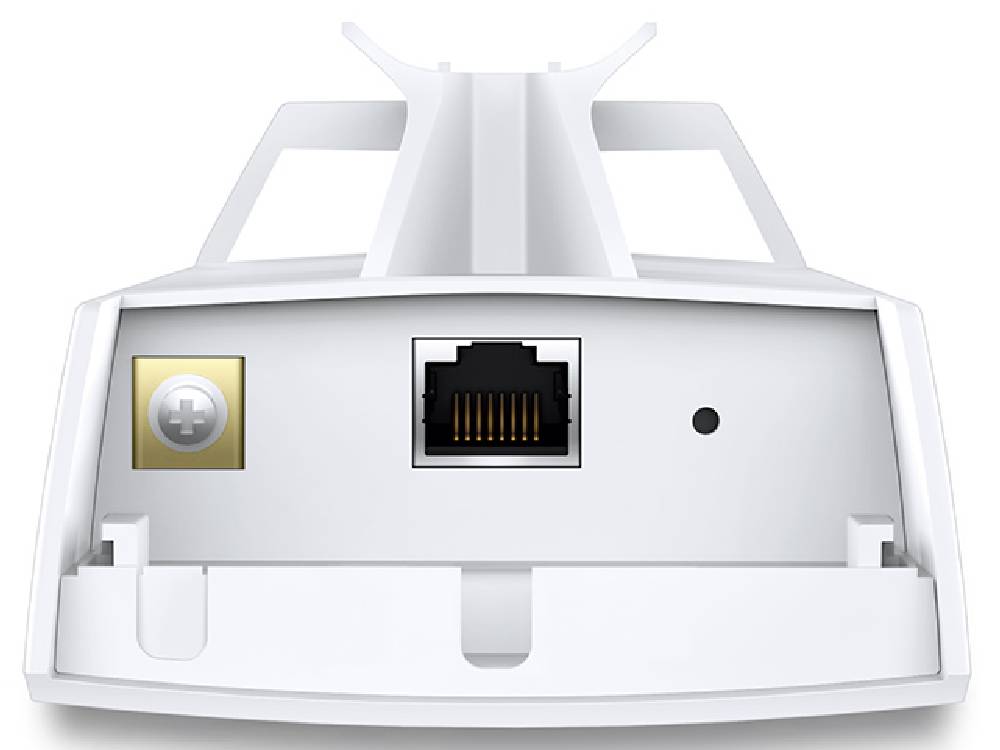

| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Power Consumption | 10.5 Watts Max |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in |
| Antenna Type | Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna |
| Protection | 15KV ESD Protection |
| Enclosure | Outdoor ASA stabilized plastic material |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) |
| Frequency | 5.15~5.85GHz |
| Transmission Power | 23dBm/200mw (Adjustable power by 1dBm) |
| Wireless Configurations | Pharos MAXtream TDMA Technology |
| Management | Discovery and Remote Management via Pharos Control application |
| System Tools | Wireless Signal Quality Indicators: |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications |
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces | 1 AC Jack with Earth Ground |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 1A Max |
| Efficiency | >80% |
| Certifications | CE/FCC |
| Certification | FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE |
| System Requirements | Google Chrome, Safari, and Firefox browsers for web GUI management |
| Environment | Operating Temperature: -30°C~70°C (-22℉~158℉) |
Product overview
